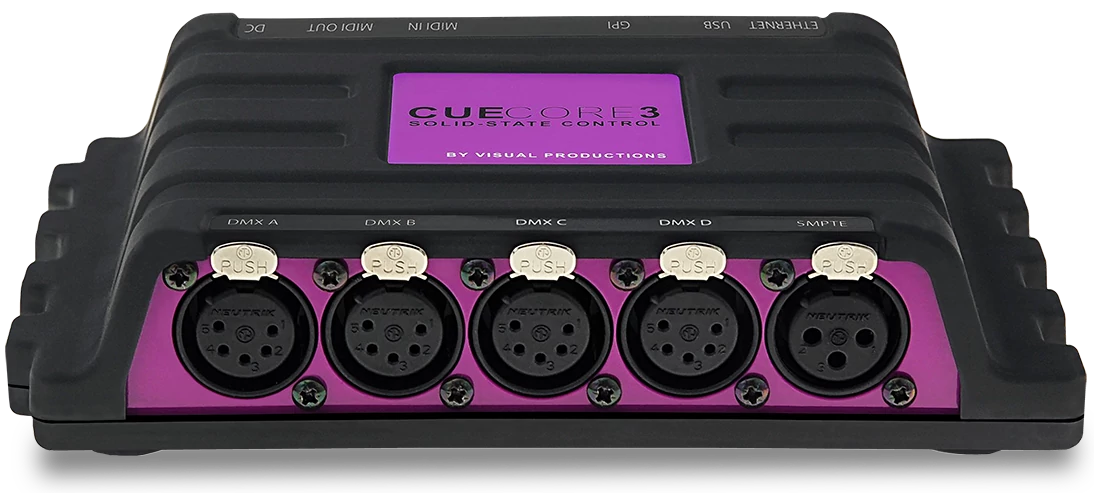

Main image of Visual Productions CueCore3

Visual Productions - CueCore3

Powerful architectural lighting controller
Visual Productions

The CueCore3 is a smart and compact solid state controller for (semi) permanent installations, architectural lighting and system integration projects. It is a standalone device for 24/7 non-stop-operation. Capable of playing back lighting shows, static scenes and dynamic effects through its 4 DMX ports. The intelligent web based programming, fast CPU and the 6GB flash memory allow for impressive performance. Record, control, interface and playback.



Description

CueCore3
Powerful architectural lighting controller
The CueCore3 is a smart and compact solid state controller for (semi) permanent installations, architectural lighting and system integration projects. It is a standalone device for 24/7 non-stop-operation. Capable of playing back lighting shows, static scenes and dynamic effects through its 4 DMX ports. The intelligent web based programming, fast CPU and the 6GB flash memory allow for impressive performance. Record, control, interface and playback.
2.048 channels and expandable to even more
Featuring 4 DMX ports, each bi-directional and optically isolated. The 4 DMX-512 universes with 2.048 channels are also available via Art-Net, sACN and KiNet. See the scale up section for larger projects.
Powerful capabilities
The CueCore3's powerful CPU and large memory allow for plenty of capacity in all of the CueCore's features. DMX recording memory is 1GB, allowing for approx. 14 hours of dynamic recording over 4 universes. The number of playbacks is now 16 with 128 tracks. The maximum number actions is 256 and the maximum number of tasks is 512 (with 16 tasks per action).
Full RDM functionality
The CueCore3 is a complete RDM controller. It features discovery, changing addresses and reading status information, to display on dashboards. For non-RDM luminaries the CueCore3 has a built in personality editor. A maximum of 256 DMX luminaries can be stored and controlled.
Record DMX or program via the web-interface
Lighting shows designed on third-party consoles or in DMX software can easily be recorded inside the CueCore3. It even offers features to help create seamless loops in your recording. Recording external shows can be through DMX, Art-Net or sACN. Alternatively, you can program your own scenes through the CueCore3 fast web-interface with console functionalities including FX, pan and tilt and plot view.
System Integration
The CueCore3 offers an impressive collection of protocols. From typical lighting protocols such as DMX-512, Art-Net, sACN and KiNet, to protocols that allow you to interact with any kind of non-lighting equipment such as GPI, MIDI, UDP, TCP & OSC. It supports timecode protocols like SMPTE and MTC, and has 4 optically isolated GPI ports available to connect to outside sources.
Show-control and automation
The autonomous behaviour of the CueCore3 can be customised by flexible show-control programming. This functionality enables you to automate the show playback. You can define triggers based on any incoming protocol. Or convert signals from one protocols into another. A full date/time/weekday scheduler is also at your disposal.
Scale up with Master / Slave
The scalable design of the CueCore3 allows for deployment in small and large projects. The autonomous operation of a single CueCore3 is often sufficient for a small installation. In projects that require larger capacities there are several options to choose from. A grid of multiple Cores, all networked together, can be applied. For this the CueCore3 is fitted with a fluent master-slave protocol for synchronising multiple units. The grid can consist of a CueCore3 as master and can be combined with slaves like multiple other CueCore3’s, CueCore2’s, QuadCore’s or DaliCore’s.

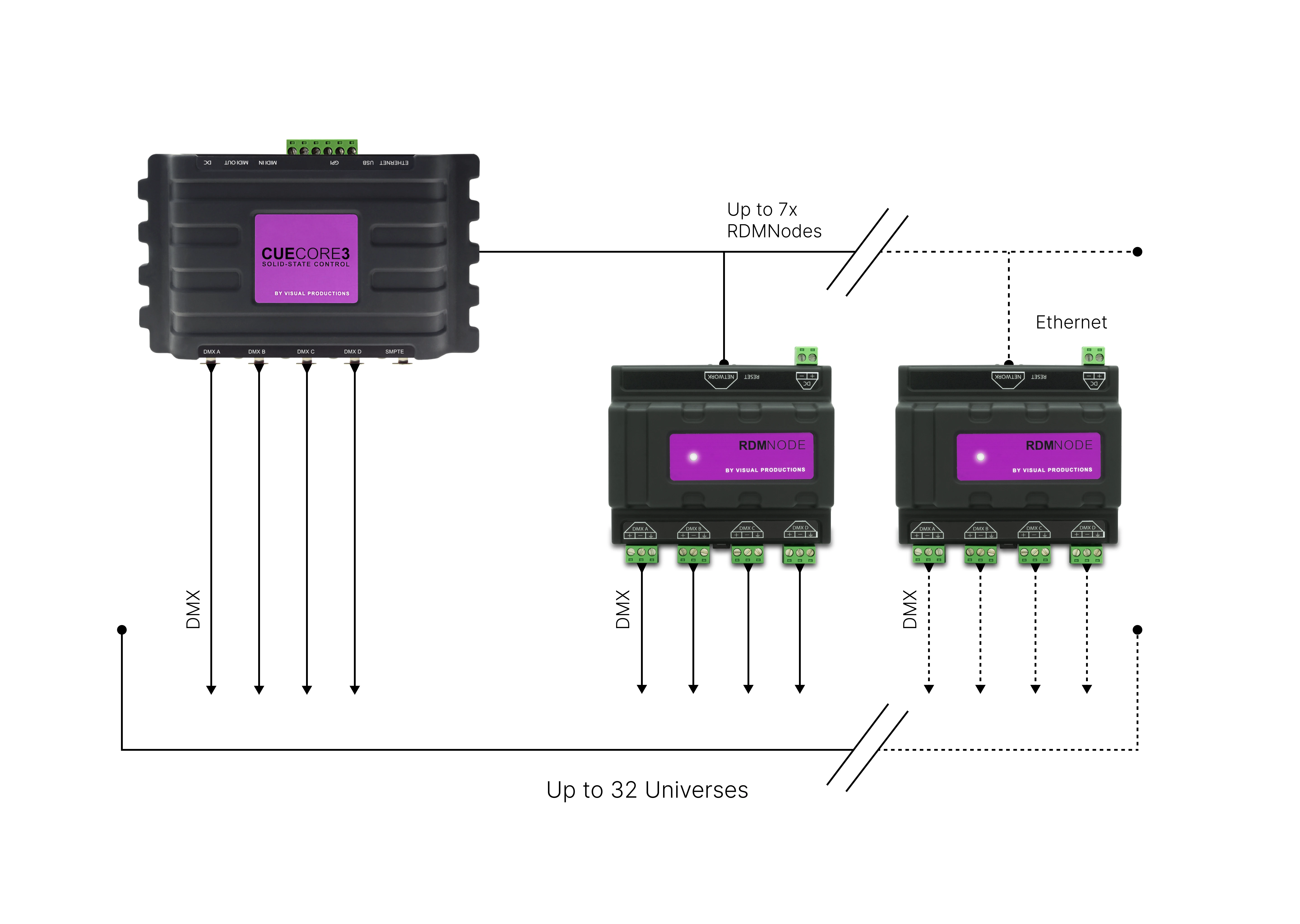

Scale up with RdmNodes
When connecting our RdmNode to the CueCore3, it unlocks 4 extra universes, up to a maximum of 8 RdmNodes to arrive at the maximum of 32 universes.

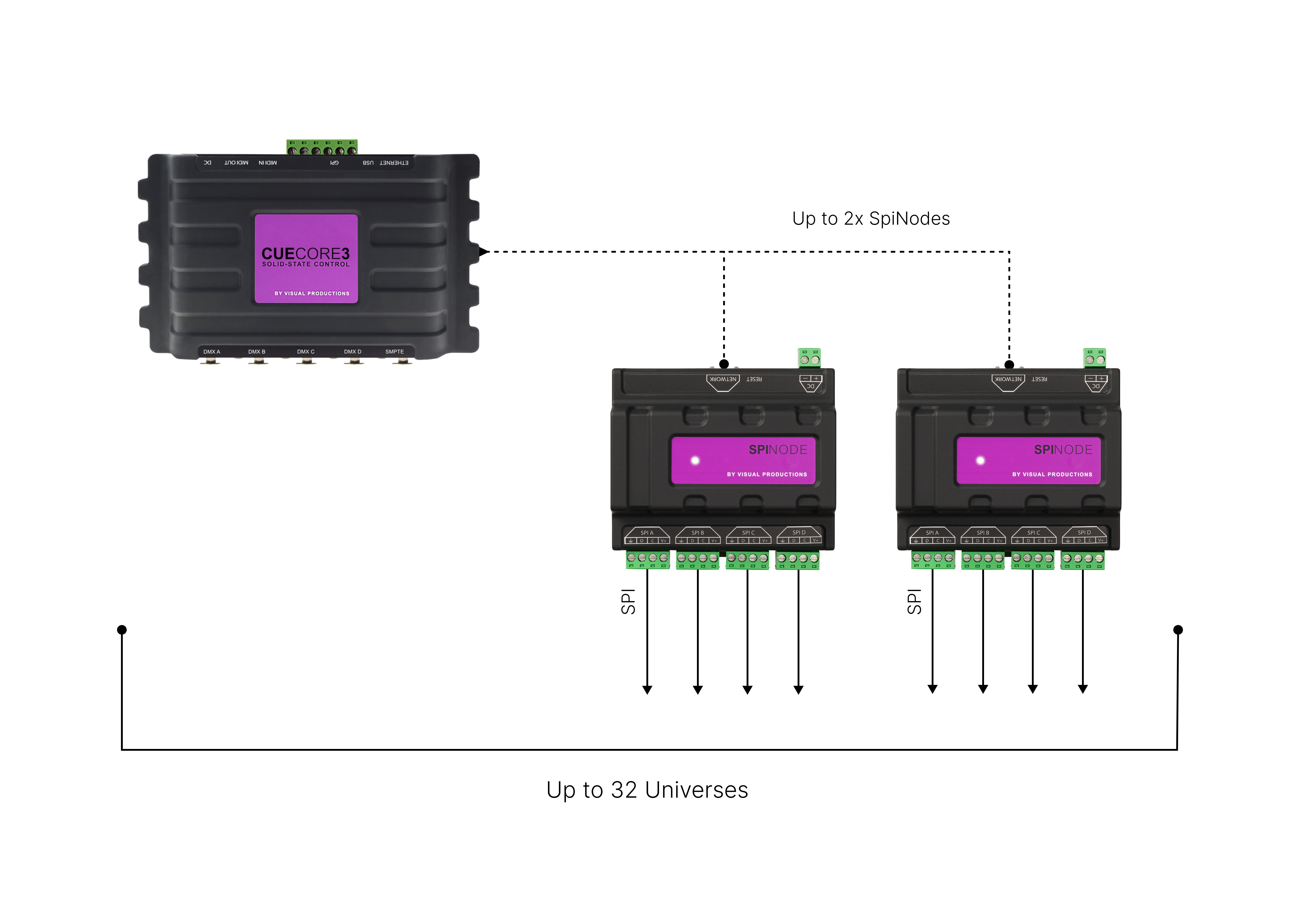

Scale up with SpiNodes
When connecting our SpiNode to the CueCore3 it unlocks 16 extra universes, up to a maximum of 2 SpiNodes to arrive at 32 universes maximum.
Supported by software tools
vManager (free download), allows you to discover connected Visual Productions products on the network, backup their internal data and upgrade firmware.
Purple Cloud for online monitoring and control
With each CueCore3 comes access to our Purple Cloud solution. The Purple Cloud enables full remote monitoring and control of the CueCore3. This platform offers additional features like creating and managing projects, events, perform back-up and restore with more features in the pipeline. The Purple Cloud solution is a reliable and secure environment, fully encrypted and GDPR compliant.
