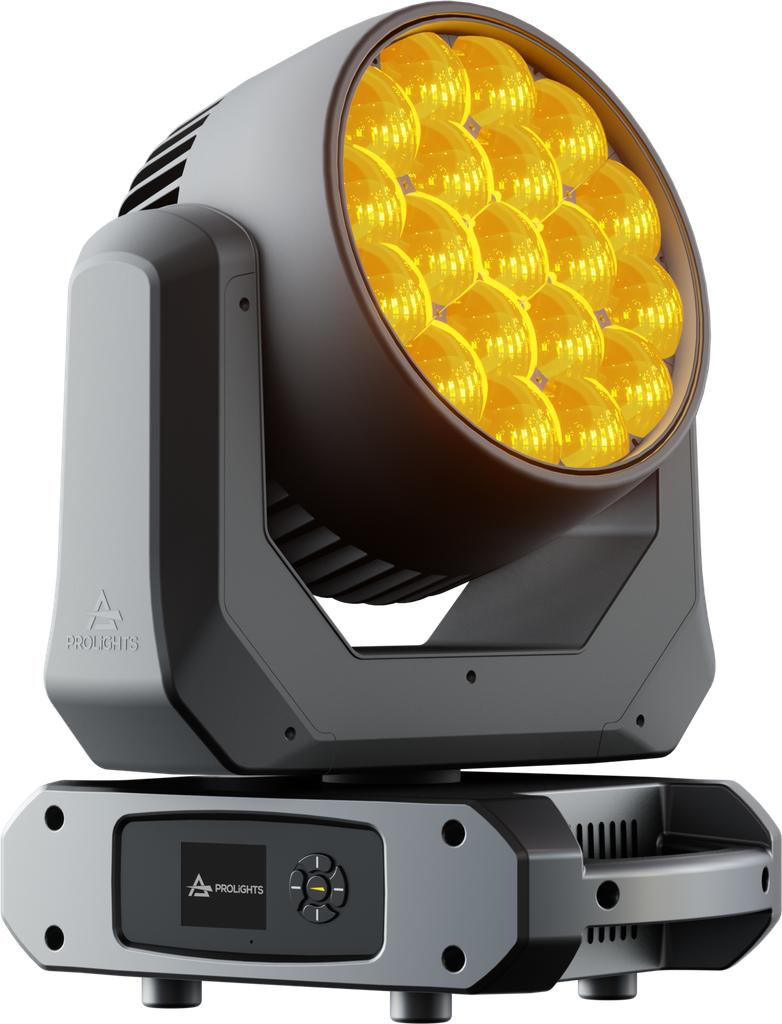

19x20W RGBW moving wash light with 4°- 52° zoom
Prolights
19x20W RGBW moving wash light with 4°- 52° zoom, black

Jet Wash19 - Professional Audio & Lighting Equipment Description

Detailed information about the Jet Wash19 by Prolights


Technical Overview

The Jet Wash19 is a compact and fast LED moving wash light with motorized zoom control.

The 20W Osram RGBW LED source provides plenty of output and combined with a highly efficient optical system capable of zooming from 4° to 52°, this unit can easily work as beam or wash light.

The Jet Wash19's colour mixing system features precise and advanced control with superior white and saturated tones, and a clean and intuitive user interface similar to the other series.

Features:
Compact form factor and fast movements
Zoom from 4° to 52° with high optical efficiency
Precise white CCT and colour mixing

LIGHT SOURCE
  • Source:
    19x20
    W
    RGBW Osram Ostar LEDs
  • Luminous flux:
    (4°) 3'019 lm - (52°) 5'337
    @Full
  • Lux:
    (4°) 23'781 lx - (52°) 682
    lx
    @5 m full
  • Source life expectancy:
    > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
  • Zoom range:
    4° - 52
    °
    motorised linear zoom
  • Lens type:
    honeycomb gapless plano-convex optics
COLOUR SYSTEM
  • Colour mixing:
    RGBW / FC
  • CCT:
    CCT control, + / - green correction, tungsten emulation
  • White presets:
    2.800 K ~ 10.000
    K
  • Colour wheel:
    virtual colour wheel with macros
DYNAMIC EFFECTS
  • Control Resolution:
    16-bit dimmer
  • Special features:
    linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
  • Hardware on-board:
    sockets for quick-Lock Omega bracket (clamp not included)
  • Pan range:
    540
    °
  • Tilt range:
    233
    °
  • Pan/Tilt resolution:
    bit
    16-bit
  • Feedback:
    automatic repositioning after accidental movement
  • Body:
    aluminium structure with high-resistance polycarbonate cover
  • Body colour:
    see variants
CONTROL
  • Protocols:
    DMX512, RDM
  • DMX channels:
    23
    channel
  • RDM:
    RDM for remote monitoring and settings
  • Display:
    LCD high resolution colour display with autoflip
  • Firmware upgrade:
    via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
ELECTRONICS
  • Dimmer:
    linear 0 ~ 100% electronic dimmer
  • Dimmer curves:
    4
    selectable dimming modes available
  • Strobe / shutter:
    1 - 30
    Hz, electronic
  • Operating temperature:
    -10° ~ +45° Ta
  • LED Control:
    flicker free operation
  • Selectable PWM:
    600 ~ 25.000 Hz
ELECTRICAL
  • Mains power supply:
    100-240V - 50/60Hz
  • Max power consumption:
    350
    W
  • Standby power:
    24 W
  • Output (at 230V):
    7
    units on a single power line
  • Power factor:
    > 0,96
PHYSICAL
  • IP rating:
    20
  • Cooling:
    forced air with fan
  • Suspension and fixing:
    any position with quick-lock omega brackets
  • Pan / tilt lock:
    for transportation and maintenance
  • Signal connection:
    Amphenol XLR 5p IN/OUT connectors
  • Power connection:
    Neutrik powerCON TRUE1 IN/OUT connectors

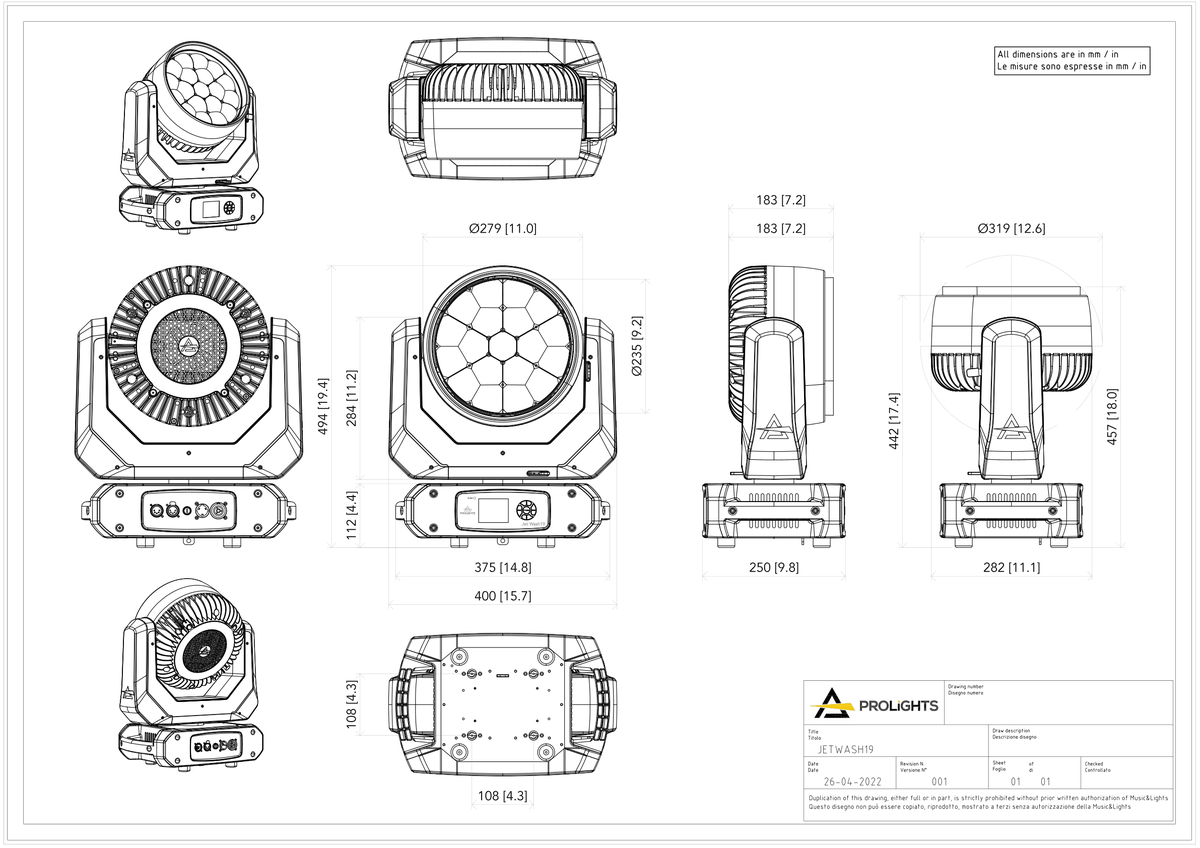

  • Dimensions (WxHxD):
    396x487x250
    mm
  • Weight:
    14,7
    kg
CERTIFICATIONS / APPROVALS
  • Certifications / Approvals:
    CE, UKCA, RCM


Jet Wash19 Technical Specifications

Complete technical specifications and documentation for the Jet Wash19 by Prolights


Jet Wash19 Downloads & Documentation

Access technical documentation, manuals, and resources for the Jet Wash19 by Prolights

Data Sheet
PDF
OM Manual
PDF
Drawing (DWG)
AutoCAD
Drawing (PDF)
PDF
DMX Chart
PDF
