Martin Audio - X12B

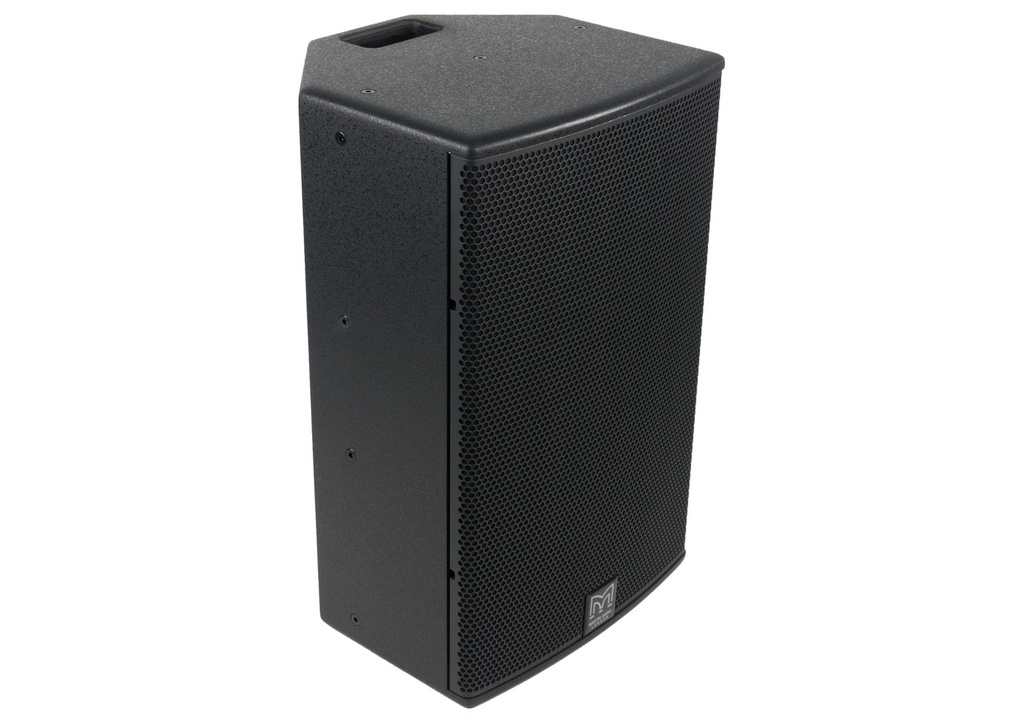

Martin AudioThe Blackline X12 fulfils the requirement for a compact system that can deliver high sound levels ? either as a stand-alone system or sup-plemented by a BlacklineX subwoofer. Featuring a 12? (300mm) LF driver unit and a 1? (25mm) exit compression driver on a user-rotatable horn, its 80? x 50? dispersion pattern is ideal for medium throw applications.
Description
TheBlackline X12LF driver has a 2.5” (63mm) voice coil and a high BL motor, while the HF compression driver utilises a 1.75” (44mm) poly-imide diaphragm for extended high frequency response. Use with a BlacklineX Series subwoofer will enable the X12 to operate as a dancefloor or sound reinforcement
Specifications
Name | Value |
---|---|
TYPE | Compact, passive two-way system |
FREQUENCY RESPONSE (5) | 62Hz-20kHz ± 3dB, -10dB @ 50Hz |
DRIVER | LF: 12” (300mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.7” (44mm) voice coil, polyimide dome compression driver |
RATED POWER (2) | 300W AES, 1200W peak |
SENSITIVITY (8) | 97dB |
MAXIMUM SPL (9) | 122dB continuous, 128dB peak |
NOMINAL IMPEDANCE | 8Ω |
DISPERSION (-6dB) | 80° H x 50° V (user-rotatable) |
CROSSOVER | 2.3kHz passive |
ENCLOSURE | Multi-angle birch/poplar ply |
FINISH | Black textured paint |
PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
CONNECTORS | 2 x NL4 type |
PIN CONNECTIONS (INPUT) | 1+/1- |
PIN CONNECTIONS (LINK) | 1+/- to 1+/- |
FITTINGS | 20 x M8 inserts, pole-mount socket, 1 x bar handle |
DIMENSIONS | (W) 358mm x (H) 574mm x (D) 337mm (W) 14.1ins x (H) 22.6ins x (D) 13.7ins |
WEIGHT | 17kg (37.5lbs) |
ACCESSORIES | Wall bracket, eyebolts |
