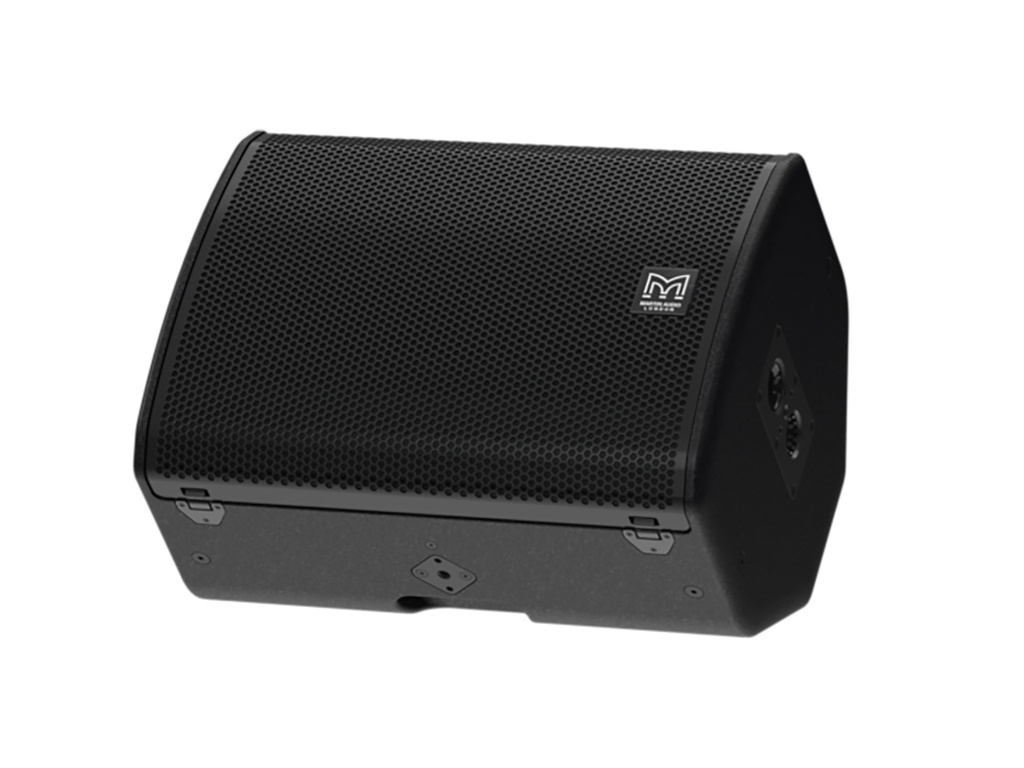

Main image of Martin Audio FP12

FP12 | Martin Audio Professional Passive Loudspeakers Equipment

Professional Passive Loudspeakers solution by Martin Audio - Available throughout the Middle East

12" Compact Point Source Loudspeaker
Martin Audio

12'' Passive 2 way FlexPoint enclosure


FP12 - Professional Passive Loudspeakers Equipment Description

Detailed information about the FP12 by Martin Audio


Technical Overview

With a multi-angle enclosure and a wide range of mounting options, the FP12 is the perfect high-power solution for rental companies and professional applications which benefit from flexibility and speed of deployment. When supplemented by a subwoofer, it is an excellent choice for premium, short-th


FP12 Technical Specifications

Complete technical specifications and documentation for the FP12 by Martin Audio

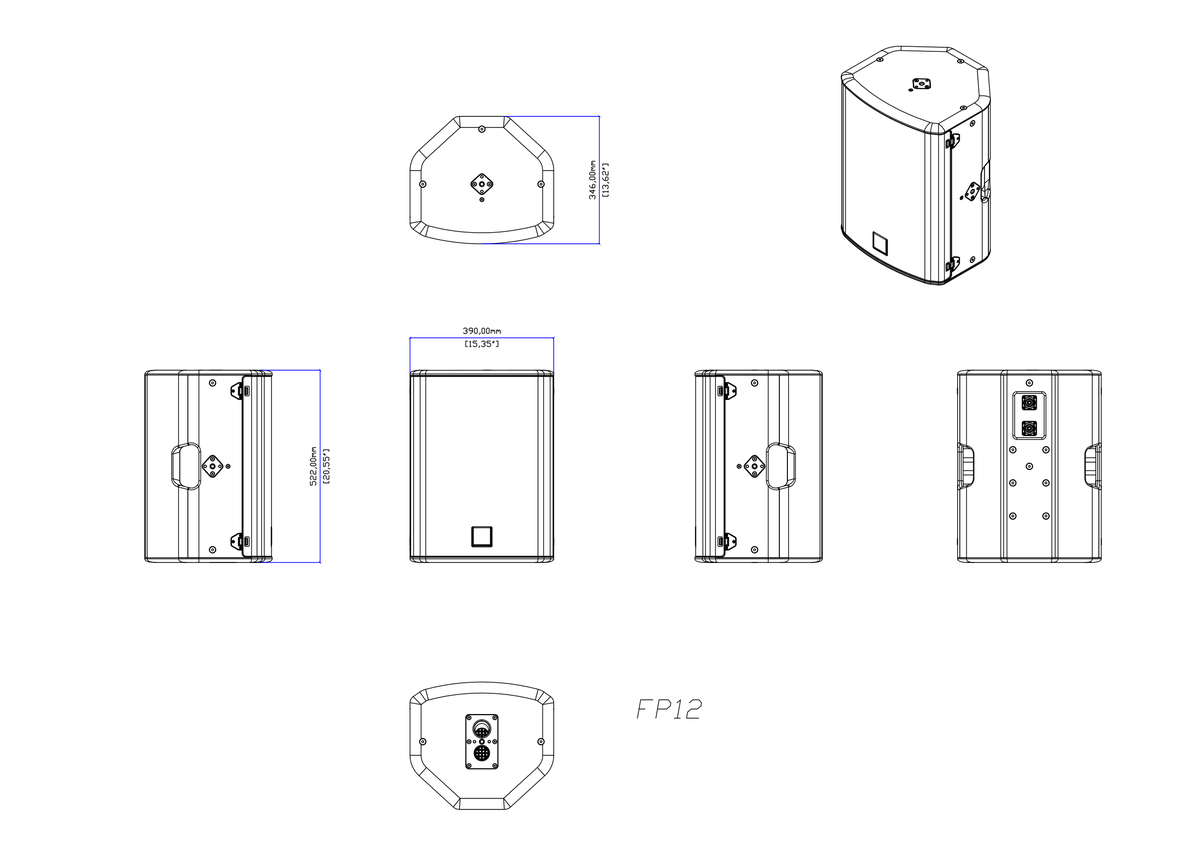

Technical Drawing
Technical drawing for FP12
Download PDF
Product Specifications
Name Value
PRODUCT NAME FP12
TYPE Coaxial passive 2-way
CROSSOVER FREQUENCY 1.5kHz
FREQUENCY RESPONSE - 4 π (5) 55Hz - 20kHz ± 3dB , -10dB @ 44Hz with preset
DRIVERS LF: 12", 3" Voice coil, Neodymium Motor with flux stabilising rings HF: 1.4" exit, 3" Voice coil, Coaxial titanium dome compression driver
SENSITIVITY (2.83V 1m free-field) 97dB
NOMINAL IMPEDANCE 8 Ohms
RATED POWER 350W AES, 1400W peak
MAXIMUM SPL 122dB Cont, 128dB Peak (6dB)
DISPERSION (-6dB) 90° H, 60° V
CONNECTORS NLT4MPXX-BAG speakons (pair)
PIN CONNECTIONS (INPUT) 1+ / 1-
PIN CONNECTIONS (LINK) 1+/- and 2+/-
ENCLOSURE Durable birch plywood
FINISH Black hardwearing paint
GRILLE Quick release steel grille with triple-layer polyester backing Access to quick release rotatable driver
IP RATING IP54 when fitted with two speakON NLT4FXX connectors
FITTINGS 4 x M10, 17 x M8 fixing points, dual pole-mount socket, 2 x handle pockets
DIMENSIONS (W) 521mm, (H) 390mm, (D) 346mm (W) 20.5ins, (H) 15.4ins, (D) 13.6ins
WEIGHT 17.5kg (38.6lbs)
VOLUME 33.5L
