Martin Audio - CDD5WTX-WR
Martin AudioAudio Passive Loudspeakers
IP54 Weatherised 5'' CDD TX Speaker White
Description
The Coaxial Differential Dispersion technology employed in the CDD5TX-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal
Specifications
| Name | Value |
|---|---|
| TYPE | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 100Hz-20kHz ± 3dB -10dB @ 70Hz |
| DRIVER | LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system |
| RATED POWER (2) | 100W AES, 400W peak |
| TRANSFORMER SETTINGS | 100V line: 6W, 12.5W, 25W 70V line: 3W, 6W, 12.5W, 25W |
| SENSITIVITY (8) | 90dB |
| MAXIMUM SPL (9) | 110dB continuous, 116dB peak 3W = 95dB, 6W = 98dB, 12.5W =101dB, 25W = 104dB |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 120°-90° horizontal, 80° vertical (user-rotatable) |
| CROSSOVER | 2.5kHz passive |
| ENCLOSURE | 3 litre, ABS |
| FINISH | Black or white as standard (RAL as cost option) |
| PROTECTIVE GRILLE | Zinc plated mild steel with powder coated finish and weatherised backing |
| ENVIRONMENTAL | Rated at IP54 |
| CONNECTORS | Low profile 13A push-lock, weatherproof input panel cover with dual cable glands |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link + |
| FITTINGS | 6 x M5 inserts for wall/ceiling brackets |

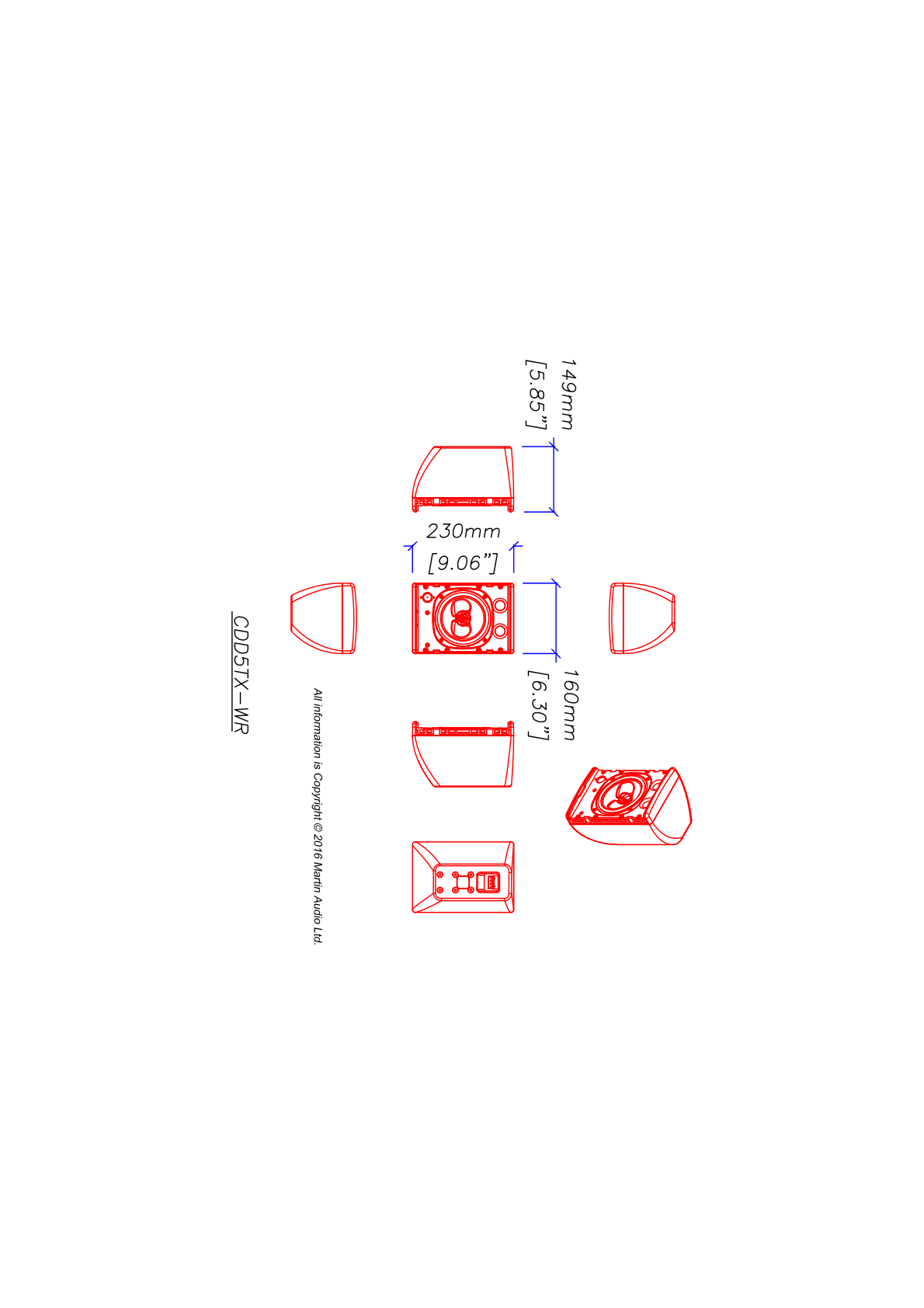

| DIMENSIONS | (W) 160mm x (H) 230mm x (D) 149mm (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins |
| WEIGHT | 3.4kg (7.5lbs) |
