5" Passive Coaxial Differential Dispersion On-wall Loudspeaker
Martin Audio

5'' CDD Speaker Black


CDD5B - Professional Passive Loudspeakers Equipment Description

Detailed information about the CDD5B by Martin Audio


Technical Overview

The Coaxial Differential Dispersion technology employed in the CDD5 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal cove


CDD5B Technical Specifications

Complete technical specifications and documentation for the CDD5B by Martin Audio

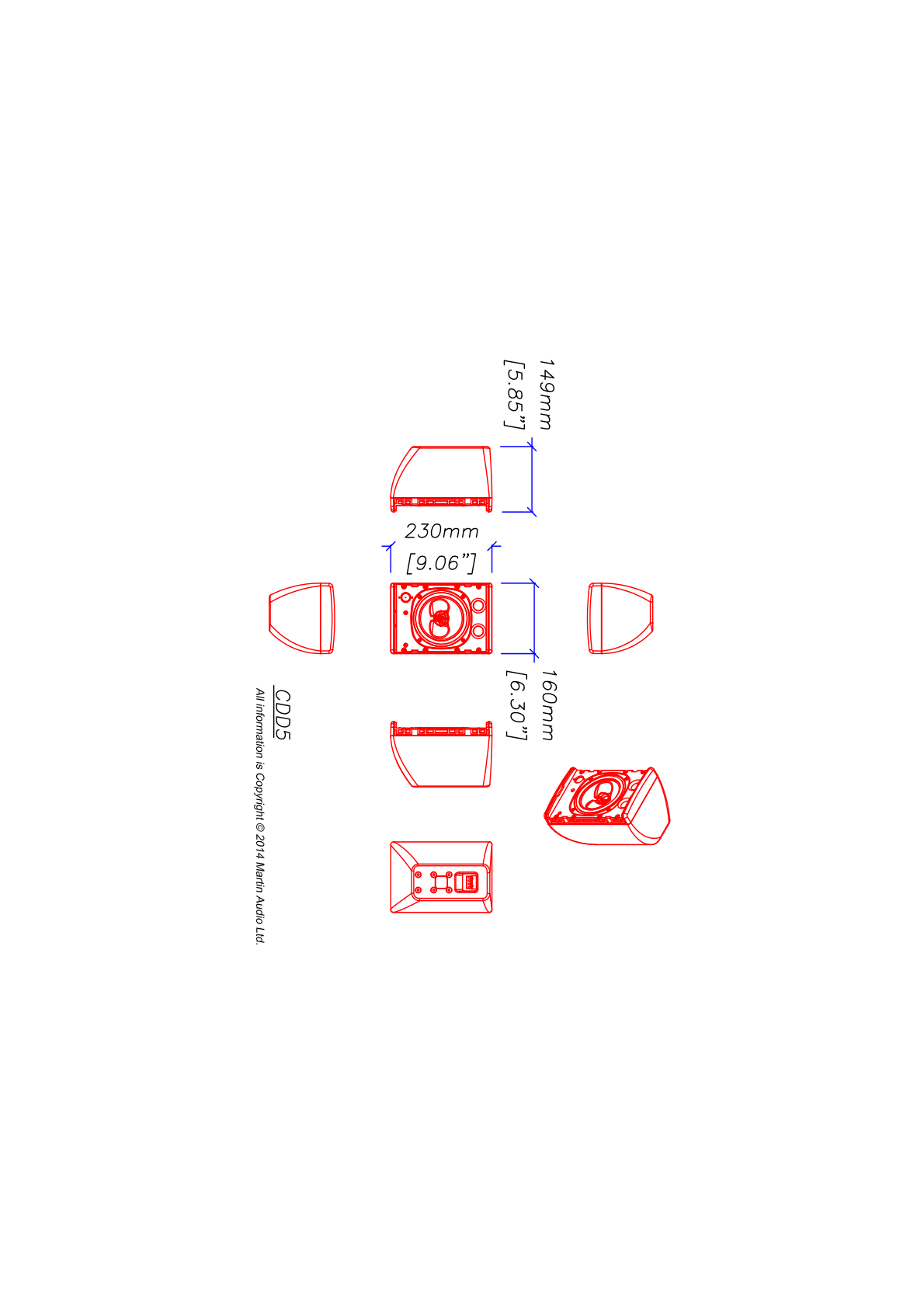

Technical Drawing
Technical drawing for CDD5B
Download PDF
Product Specifications
Name Value
TYPE Ultra-Compact, Coaxial Differential Dispersion passive two-way system
FREQUENCY RESPONSE (5) 100Hz-20kHz ± 3dB, 10dB @ 70Hz
DRIVER LF: 5.25” (130mm)/1.25” (32mm) voice coil, long excursion, ferrite motor system HF: 0.75” (19mm) voice coil, fabric dome with neodymium motor system
RATED POWER (2) 100W AES, 400W peak
SENSITIVITY (8) 90dB
MAXIMUM SPL (9) 110dB continuous, 116dB peak
NOMINAL IMPEDANCE
DISPERSION (-6dB) 120˚-90˚ horizontal, 80˚ vertical (user-rotatable)
CROSSOVER 2.5kHz passive
ENCLOSURE 3 litre, ABS
FINISH Black or white
PROTECTIVE GRILLE Black or white perforated steel with scrim cloth backing
CONNECTORS Low profile 13A push-lock
PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link +
FITTINGS 6 x M5 inserts for wall/ceiling brackets
DIMENSIONS (W) 160mm x (H) 230mm x (D) 149mm (W) 6.3ins x (H) 9.1 ins x (D) 5.9 ins
WEIGHT 3kg (6.6lbs)
