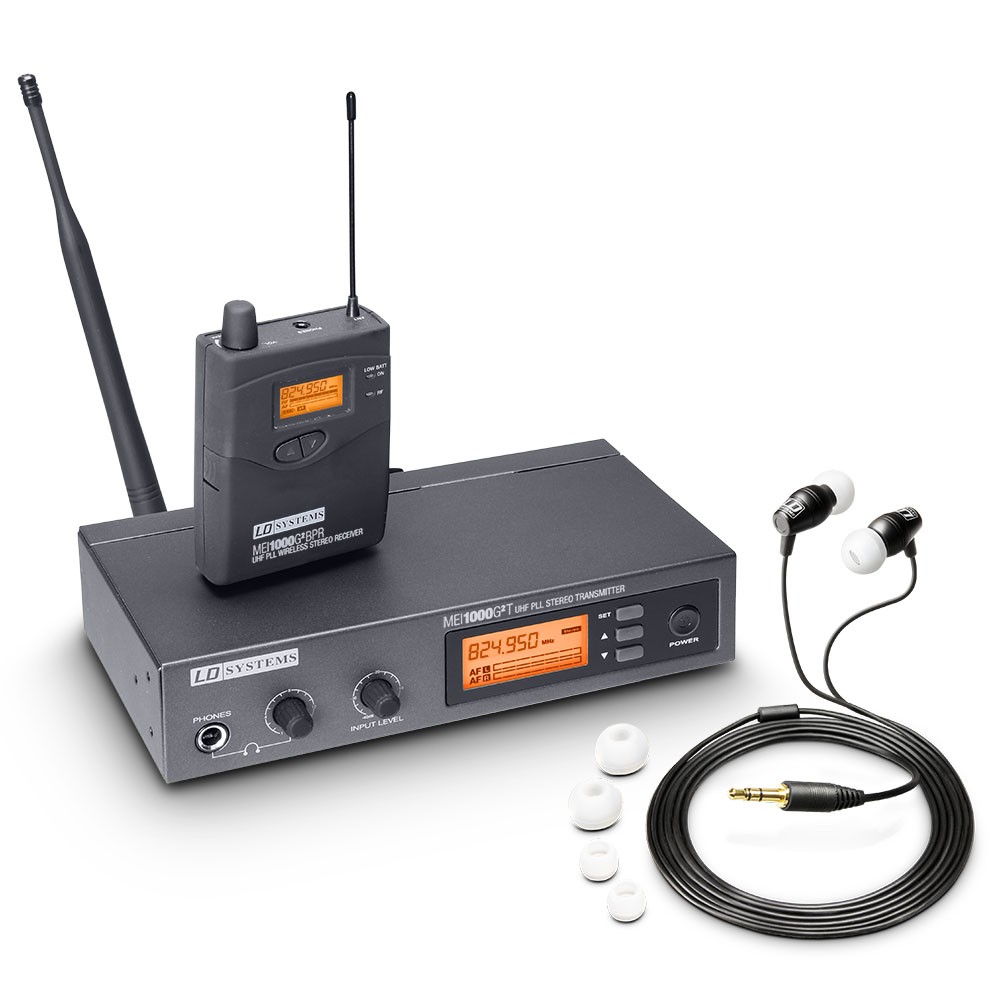

Main image of LD Systems MEI 1000 G2

MEI 1000 G2 | LD Systems Professional Wiress in-ear monitoring Equipment

Professional Wiress in-ear monitoring solution by LD Systems - Available throughout the Middle East

In-Ear Monitoring System wireless
LD Systems

In-Ear Monitoring System wireless


MEI 1000 G2 - Professional Wiress in-ear monitoring Equipment Description

Detailed information about the MEI 1000 G2 by LD Systems


Technical Overview

The new LD Systems MEI 1000 G2 is a license-free* in-ear monitoring system with 96 UHF channels that delivers outstanding sound quality with a large dynamic range and outstanding crosstalk behaviour in the 823-832 and 863-865 MHz frequency bands.Switchable mono, stereo and focus monitoring modes as well as adjustable EQ and limiter functions permit natural sound reproduction for any application, with a frequency response of 60-16 Hz, a high S/N ratio and low THD. The LD MEI 1000 G2 permits simultaneous operation of up to five systems.The earphones are very comfortable to wear, and the multifunctional display on the receiver shows all relevant system information. With high quality batteries it is possible to achieve operating times of 12 hours and more. A 19" rackmount kit and a rugged ABS plastic carrying case complete the MEI 1000 G2 package.* licence-free: ISM band licence-free in Europe, please check duplex gap for your specific country


MEI 1000 G2 Technical Specifications

Complete technical specifications and documentation for the MEI 1000 G2 by LD Systems

Specifications

Name Value
Product type In-ear Monitoring Accessories
Type Receivers
Transmission frequency range 823 - 832 MHz, 863 - 865 MHz
Channels 96 (8 groups of 12 channels)
Transmission method FM, stereo
Rated HF output power 10 mW
Frequency response 60 - 16000
Signal-to-noise ratio 80 dB
Inputs 2
Input connectors 6.3 mm jack , XLR
Input impedance (kOhms) 14 kOhm
Antenna connector BNC
Controls Down , Escape , Set , Up , volume
Indicators LC display , low battery , Power
Power supply 2 x 1.5 V AA
Width 65 mm
Height 90 mm
Depth 24 mm
Weight 0,1 kg
Accessories (included) Antenna , Power supply
Total Harmonic Distortion (THD) < 1 %
Audio output 3.5 mm TRS
Max. audio output level 100 mW
Operating time > 12 hrs., battery-dependent
Features incl. batteries
