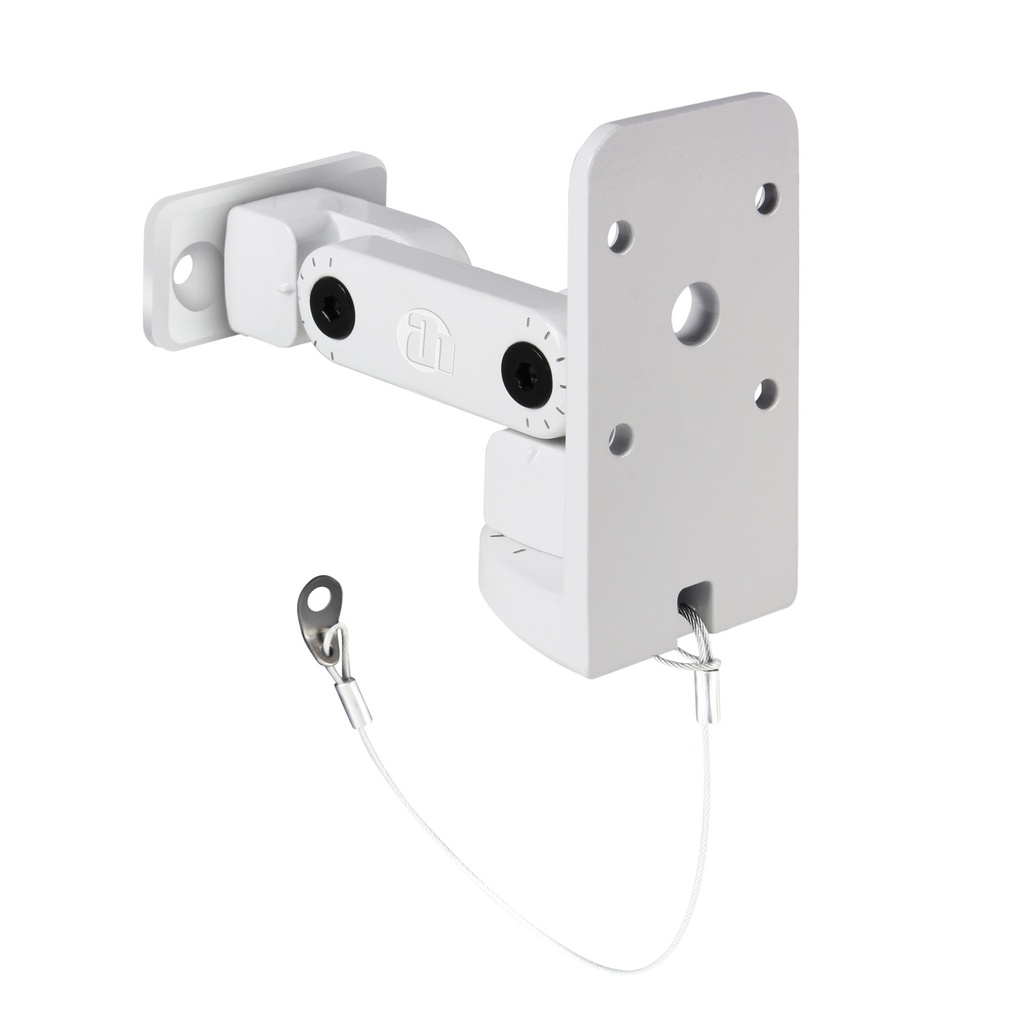

Wall Mounting Bracket for CURV 500 Satellites, White
LD Systems

CURV 500 WMB W - Wall Mounting Bracket for CURV 500 Satellites, White


CURV 500 WMB W - Professional Audio & Lighting Equipment Description

Detailed information about the CURV 500 WMB W by LD Systems


Technical Overview

The LD Systems CURV 500® mounting bracket is designed to mate with the CURV 500 SmartLink adapter. It is made of powder coated die cast aluminium, is fully adjustable on all axes and can therefore be individually aligned. It includes a 20 cm steel safety rope to secure the CURV 500® satellites attached to the SmartLink adapter in accordance with BGV C1.

Note:

Under the statutory provisions (BGV C1 § 7 "Protection against falling objects") speakers must additionally be secured for attachment to a wall bracket by means of a steel rope, for example.


CURV 500 WMB W Technical Specifications

Complete technical specifications and documentation for the CURV 500 WMB W by LD Systems

Specifications

Name Value
Product type PA Loudspeakers Accessories
Type Speaker Wall Mount
Material Die-cast aluminium
Surface Powder coated
Color white
Max. load 10 kg
Weight 0,35 kg
Additional information adjustable on all axes, including safety wire (length 20cm)
