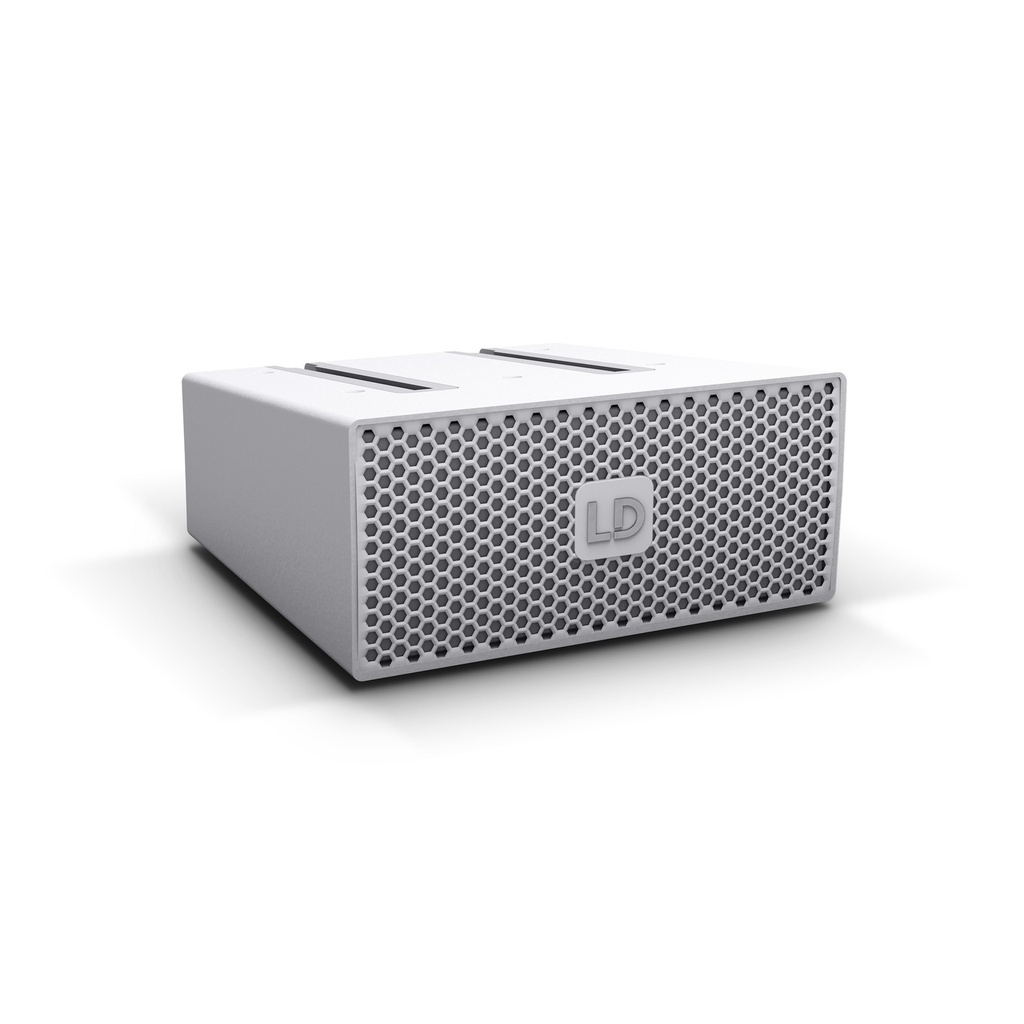

Main image of LD Systems CURV 500 SLA W

CURV 500 SLA W | LD Systems Professional Audio & Lighting Equipment

Professional audio, video and lighting solution by LD Systems - Available throughout the Middle East

SmartLink Adapter for up to six LD CURV 500® Satellites, white
LD Systems

CURV 500 SLA W - SmartLink Adapter for up to six LD CURV 500® Satellites, white


CURV 500 SLA W - Professional Audio & Lighting Equipment Description

Detailed information about the CURV 500 SLA W by LD Systems


Technical Overview

The innovative SmartLink® Adapter is the perfect base for the CURV 500® system. With the patented click mechanism, up to 6 satellites can be connected with each other, without the need for any cables. Two 16 mm flanges allow for different angles on the stand. So, depending on the assembly option, an optimised sound is possible. Four M6 threads for wall mounting, four M3 threads for the ceiling and four rubber feet provide a wide range of possibilities. Thanks to the Speakon-compatible socket and the terminal block, two input variants are available. In case of ceiling mounting, the LD Systems logo simply rotates. The powder-coated cabinet made of die-cast aluminium, with dimensions of 122 x 57 x 122 mm, weighs 0.54 kg.


CURV 500 SLA W Technical Specifications

Complete technical specifications and documentation for the CURV 500 SLA W by LD Systems

Specifications

Name Value
Product type PA Complete Systems Accessories
Type Smartlink® Adapter
Material Die-cast aluminium
Surface Powder coated
Connectors 1x Phoenix, 1x Speakon compatible
Color white
Width 122 mm
Height 57 mm
Depth 57 mm
Weight 0,35 kg
Features 2 x 16 mm flanges, 2x M6 thread for optional wall mount
