Description
As a stand-alone loudspeaker, it has a multitude of professional applications — from distributed sound reinforcement, HoW and AV events to frontfill/infill and use as a micro stage monitor. Complemented by a BlacklineX subwoofer, it is the ideal, simple-to-use system for portable applications and in
Specifications
| Name | Value |
|---|---|
| TYPE | Ultra-Compact, passive two-way system |
| FREQUENCY RESPONSE (5) | 70Hz-20kHz ± 3dB, -10dB @ 60Hz |
| DRIVER | LF: 8” (200mm)/2” (50mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1” (25mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 200W AES, 800W peak |
| SENSITIVITY (8) | 92dB |
| MAXIMUM SPL (9) | 115dB continuous, 121dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 90° H x 50° V (user-rotatable) |
| CROSSOVER | 2.9kHz passive |
| ENCLOSURE | Multi-angle birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| PIN CONNECTIONS (LINK) | 1+/- to 1+/- |
| FITTINGS | 13 x M8, 6 x M6 inserts, pole-mount socket, 1 x pocket handle |

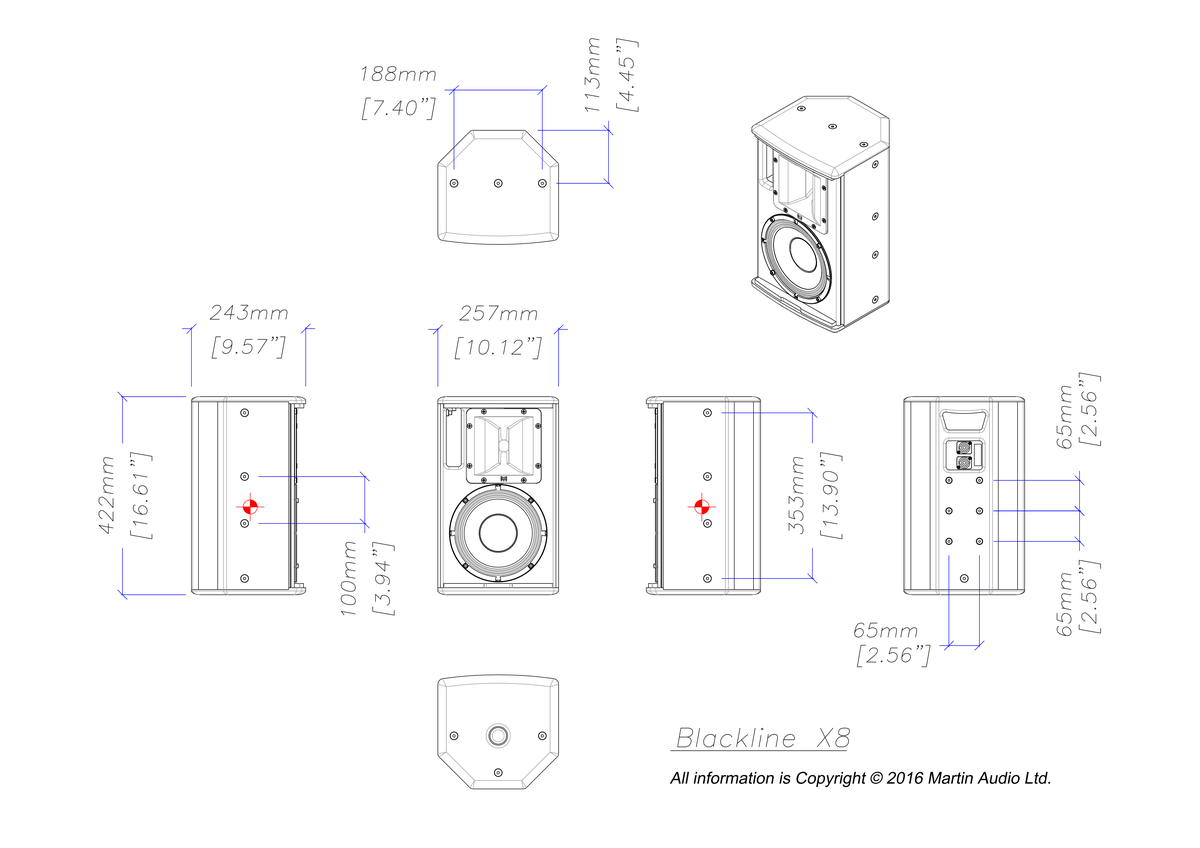

| DIMENSIONS | (W) 257mm x (H) 422mm x (D) 243mm (W) 10.1ins x (H) 16.6ins x (D) 9.6ins |
| WEIGHT | 8kg (17.6lbs) |
| ACCESSORIES | Wall bracket, eyebolts |
