Description
It has a multitude of professional applications — from distributed sound reinforcement, HoW and AV events to frontfill/infill and use as an unobtrusive stage monitor. With a maximum SPL of 124dB @ 1m, it is uniquely placed to meet the foreground requirements of music bars and clubs that require upfr
Specifications
| Name | Value |
|---|---|
| TYPE | Compact, passive two-way system |
| FREQUENCY RESPONSE (5) | 65Hz-20kHz ± 3dB, -10dB @ 55Hz |
| DRIVER | LF: 10” (250mm)/2.5” (63.5mm) voice coil, ferrite motor system HF: 1” (25mm) exit/1.4” (35mm) voice coil, polyimide dome compression driver |
| RATED POWER (2) | 250W AES, 1000W peak |
| SENSITIVITY (8) | 94dB |
| MAXIMUM SPL (9) | 118dB continuous, 124dB peak |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 90° H x 50° V (user-rotatable) |
| CROSSOVER | 2.4kHz passive |
| ENCLOSURE | Multi-angle birch/poplar ply |
| FINISH | Black textured paint |
| PROTECTIVE GRILLE | Black perforated steel with scrim cloth backing |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | 1+/1- |
| PIN CONNECTIONS (LINK) | 1+/- to 1+/- |
| FITTINGS | 19 x M8 inserts, pole-mount socket, 1 x bar handle |

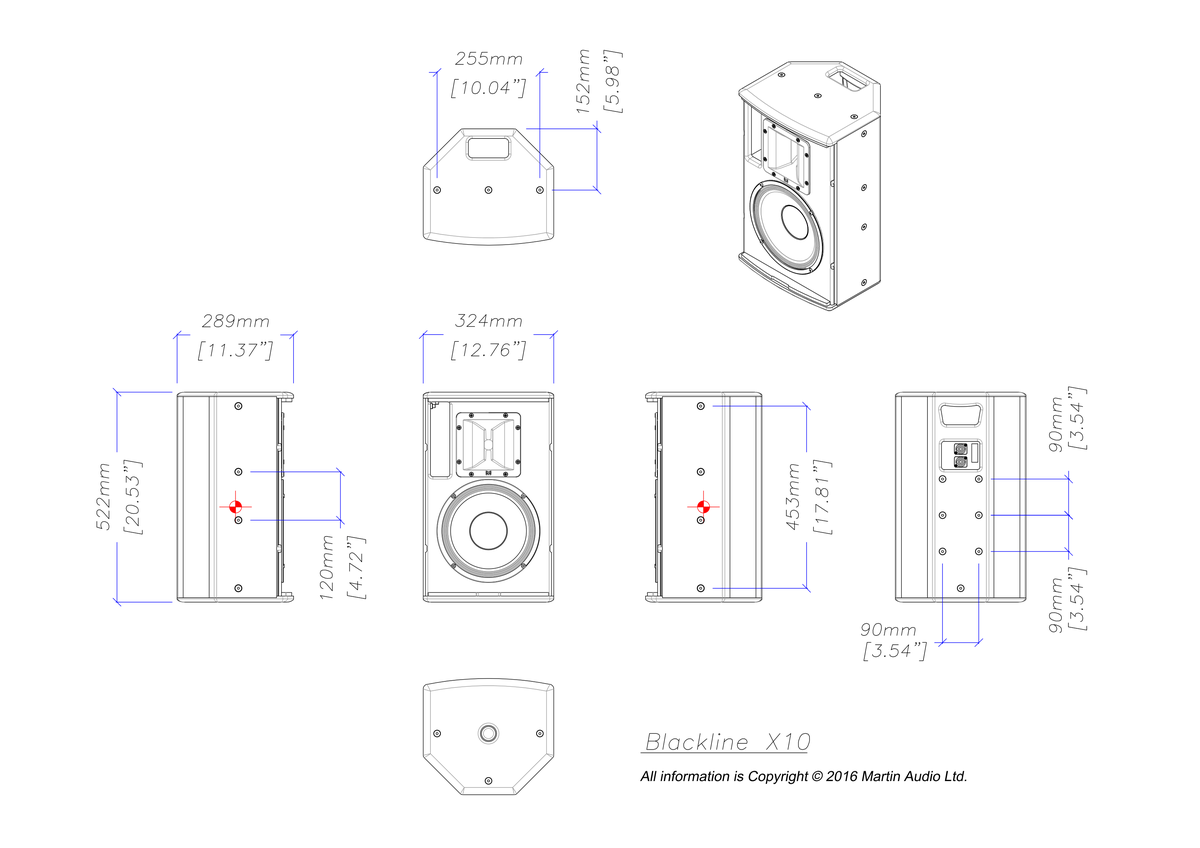

| DIMENSIONS | (W) 324mm x (H) 522mm x (D) 289mm (W) 12.8ins x (H) 20.6ins x (D) 11.4ins |
| WEIGHT | 14kg (30.9lbs) |
| ACCESSORIES | Wall bracket, eyebolts |
