Martin Audio - SX110B
Martin AudioAudio Passive Subwoofers

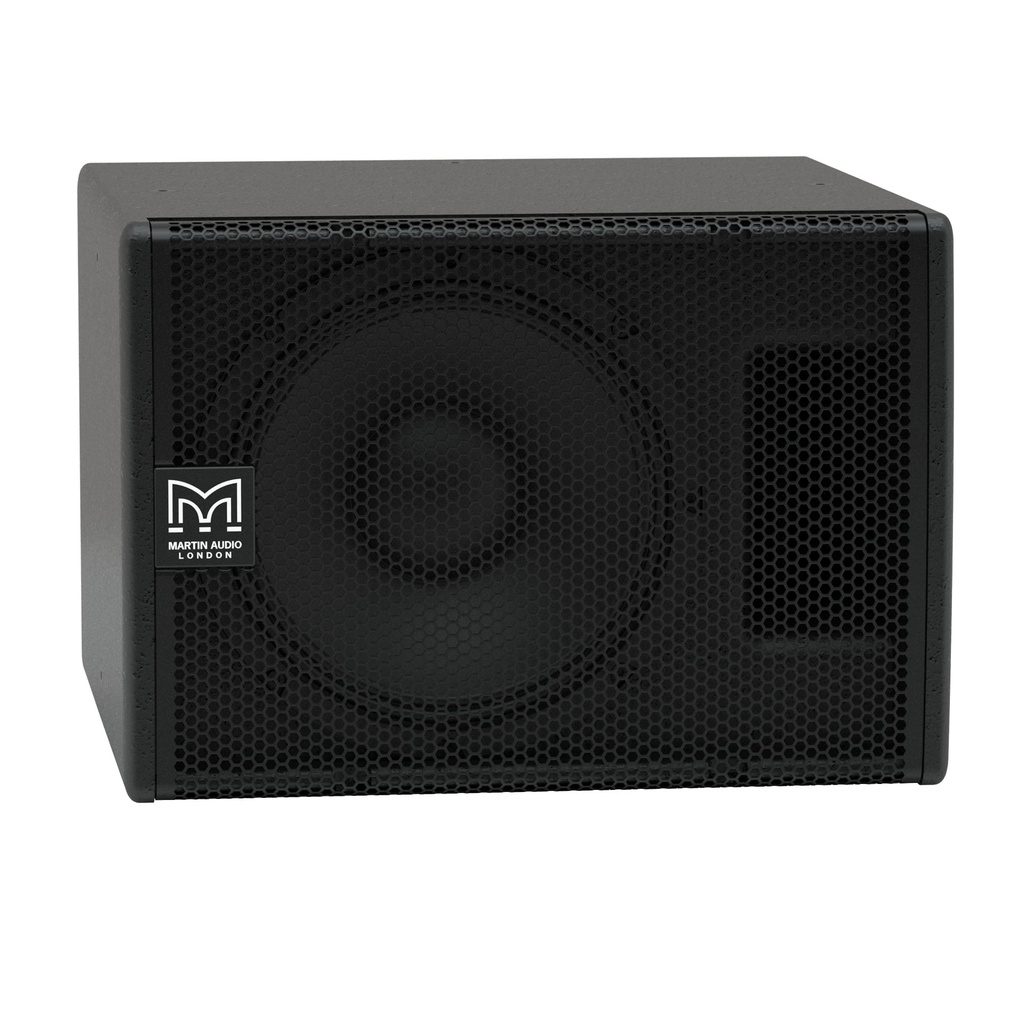

10'' Compact Direct Radiating Sub In Black
Description
The SX110 features a 10” (250mm)/2” (50mm) voice coil driver and generously sized low frequency port for reduced air noise. An ideal subwoofer to augment the bass output of ADORN Series or small CDD loudspeakers, it can be used on the ground or flown using integral M8 inserts. TheSX110enclosure is
Specifications
| Name | Value |
|---|---|
| TYPE | Slimline, direct radiating subwoofer |
| FREQUENCY RESPONSE (1) | 50Hz-150Hz ± 3dB, -10dB @ 42Hz |
| DRIVER | 1 x 10” (250mm)/2” (50mm) voice coil, long excursion, ferrite magnet |
| RATED POWER (2) | 250W AES, 1000W peak |
| RECOMMENDED AMPLIFIER | VIA 2502 |
| SENSITIVITY (10) | 97dB |
| MAXIMUM SPL (9) | 121dB continuous, 127dB peak (half space) |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | Omnidirectional |
| CROSSOVER | 80-120Hz active |
| ENCLOSURE | Plywood |
| FINISH | Black or white |
| PROTECTIVE GRILLE | Perforated steel |
| CONNECTORS | 2 x NL4 type |
| PIN CONNECTIONS (INPUT) | +1, -1 Link through: +2, -2 |
| PINS CONNECTIONS (LINK) | +1, -1 Link through: +2, -2 |
| FITTINGS | 12 x M8 inserts |

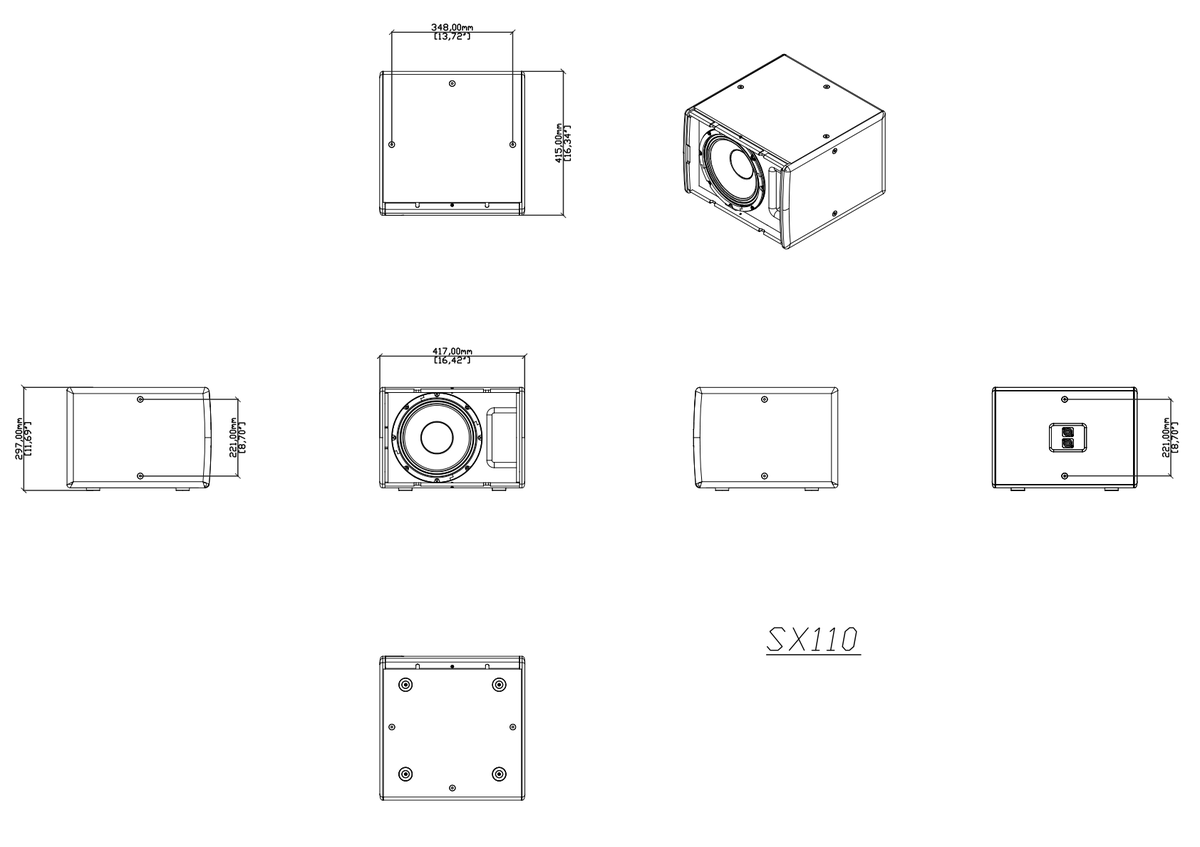

| DIMENSIONS (INCL FEET) | (W) 417mm x (H) 297mm x (D) 415mm (W) 16.4ins x (H) 11.7ins x (D) 16.3ins |
| WEIGHT | 12kg (26.5lbs) |
