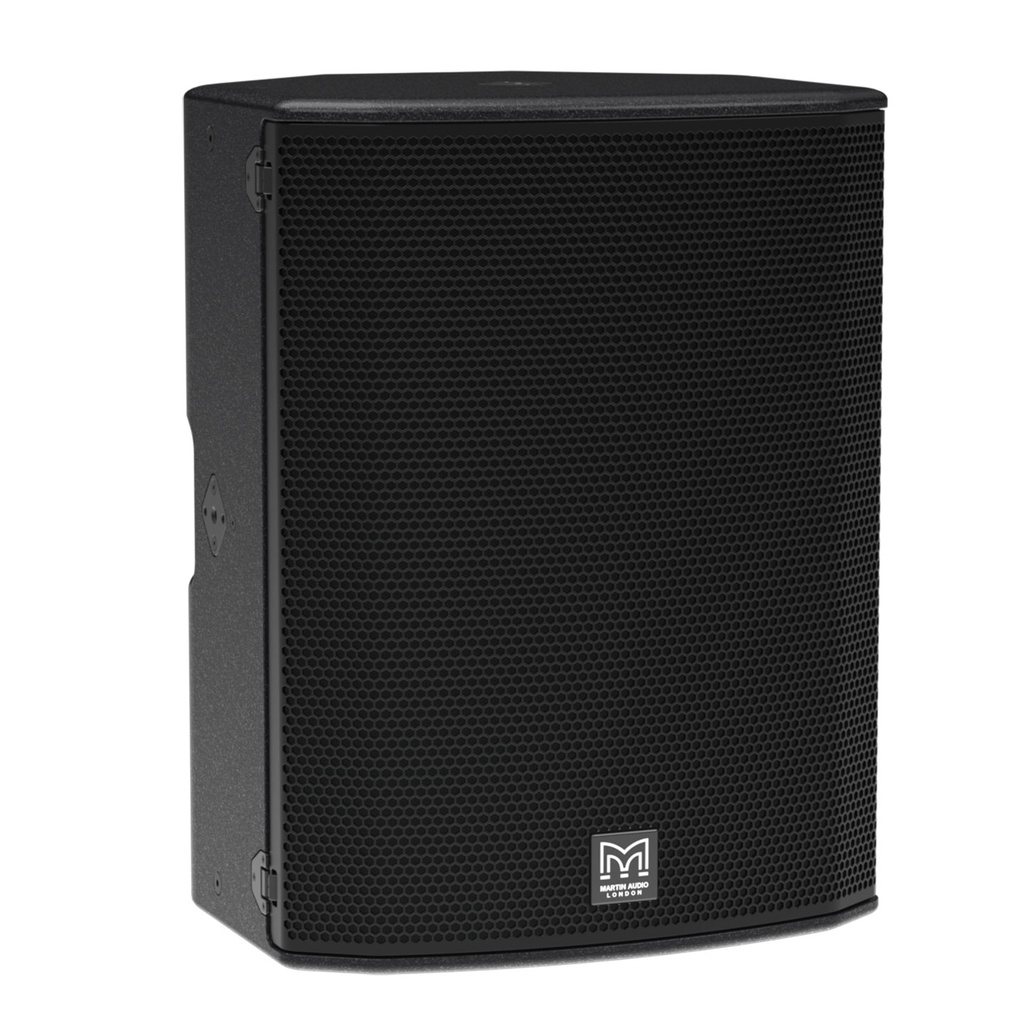

FP15 - Professional Passive Column Speakers Equipment Description
Detailed information about the FP15 by Martin Audio
Technical Overview
With a multi-angle enclosure and a wide range of mounting options, the FP15 is the perfect high-power solution for rental companies and applications which benefit from its flexibility and speed of deployment. When supplemented by a subwoofer, it is an excellent choice for a top-flight portable live
FP15 Technical Specifications
Complete technical specifications and documentation for the FP15 by Martin Audio

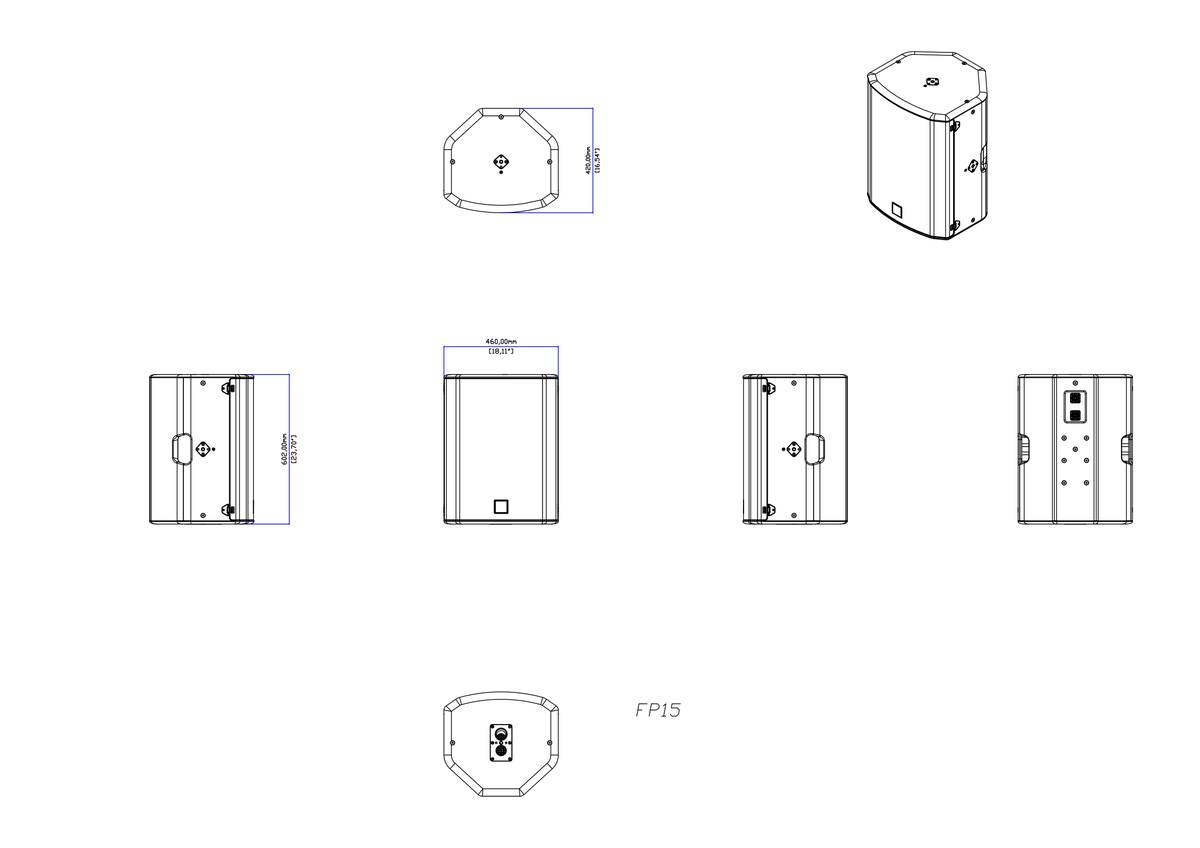

Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| PRODUCT NAME | FP15 |
| TYPE | Coaxial passive 2-way |
| CROSSOVER FREQUENCY | 1.1kHz |
| FREQUENCY RESPONSE - 4 π (5) | 50Hz - 20kHz ± 3dB , -10dB @ 39Hz with preset |
| DRIVERS | LF: 15", 3.5" Voice coil, Neodymium Motor with flux stabilising rings HF: 1.4" exit, 3" Voice coil, Coaxial titanium dome compression driver |
| SENSITIVITY (2.83V 1m free-field) | 99dB |
| NOMINAL IMPEDANCE | 8 Ohms |
| RATED POWER | 500W AES, 2000W peak |
| MAXIMUM SPL | 126dB Cont, 132dB Peak (6dB) |
| DISPERSION (-6dB) | 80° H, 50° V |
| CONNECTORS | NLT4MPXX-BAG speakons (pair) |
| PIN CONNECTIONS (INPUT) | 1+ / 1- |
| PIN CONNECTIONS (LINK) | 1+/- and 2+/- |
| ENCLOSURE | Durable birch plywood |
| FINISH | Black hardwearing paint |
| GRILLE | Quick release steel grille with triple-layer polyester backing Access to quick release rotatable driver |
| IP RATING | IP54 when fitted with two speakON NLT4FXX connectors |
| FITTINGS | 4 x M10, 17 x M8 fixing points, dual pole-mount socket, 2 x handle pockets |
| DIMENSIONS | (W) 601mm, (H) 460mm, (D) 420mm (W) 23.7ins, (H) 18.1ins, (D) 16.5ins |
| WEIGHT | 27.4kg (60.4lbs) |
| VOLUME | 57L |
