Martin Audio - CDD8B-WR

Martin Audio
Audio Passive Loudspeakers

8'' CDD Speaker WR Black




Description

The Coaxial Differential Dispersion technology employed in the CDD8-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driv


Specifications

Name Value
TYPE Ultra-Compact, Coaxial Differential Dispersion passive two-way system
FREQUENCY RESPONSE (5) 70Hz-20kHz ± 3dB -10dB @ 55Hz
DRIVER LF: 8” (200mm)/2” (50mm) voice coil, long excursion, shared ferrite motor system with HF HF: 1” (25mm) exit/1.4” (38mm) voice coil, polyimide dome compression driver
RATED POWER (2) 200W AES, 800W peak
SENSITIVITY (8) 94dB
MAXIMUM SPL (9) 117dB continuous, 123dB peak
NOMINAL IMPEDANCE
DISPERSION (-6dB) 110°-80° horizontal, 60° vertical (user-rotatable)
CROSSOVER 2.3kHz passive
ENCLOSURE 14 litre, composite material
FINISH Black or white as standard
PROTECTIVE GRILLE Zinc plated mild steel with powder coated finish and weatherised backing
ENVIRONMENTAL Rated at IP54
CONNECTORS Low profile 13A push-lock, weatherproof input panel cover with cable gland
PIN CONNECTIONS Left to right: Input+, Input -, Link -, Link +
FITTINGS 6 x M6 inserts for wall/ceiling brackets

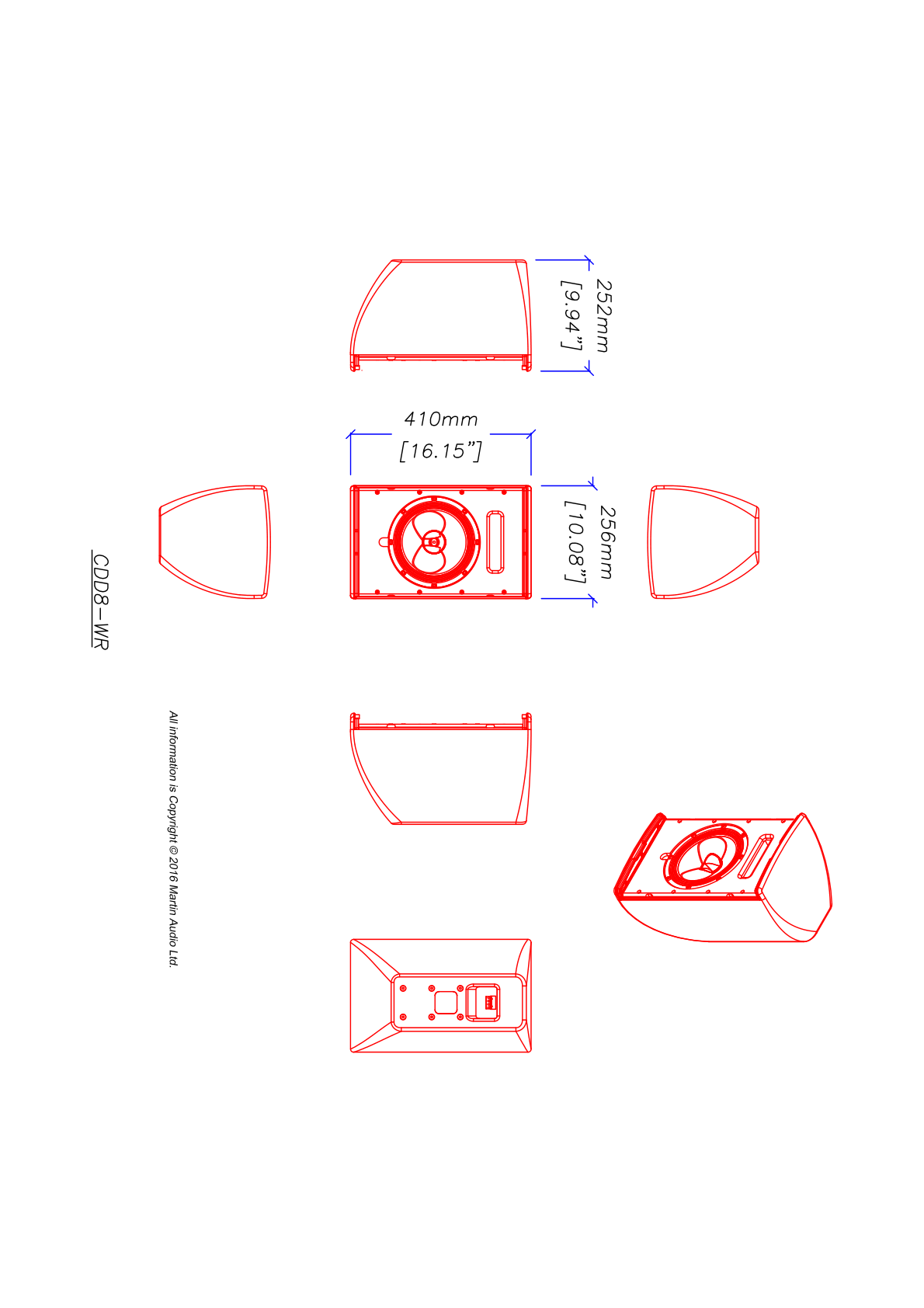

DIMENSIONS (W) 256mm x (H) 410mm x (D) 252mm (W) 10.1ins x (H) 16.1ins x (D) 9.9ins
WEIGHT 9.8kg (21.6lbs)
