IP54 WEATHERISED 6.5''CDD TX SPEAKER BLACK
Description
The Coaxial Differential Dispersion technology employed in the CD6TX-WR delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience to distribute sound evenly front-to-back, while having wide horizontal
Specifications
| Name | Value |
|---|---|
| TYPE | Ultra-Compact, Coaxial Differential Dispersion passive two-way system |
| FREQUENCY RESPONSE (5) | 80Hz-20kHz ± -10dB @ 70Hz |
| DRIVER | LF: 6.5” (165mm)/1.5” (38mm) voice coil, long excursion, ferrite motor system HF: 1” (25mm) voice coil, fabric dome with neodymium motor system |
| RATED POWER (2) | 150W AES, 600W peak |
| TRANSFORMER SETTINGS | 100V line: 12.5W, 25W, 50W 70V line: 6.5W, 12.5W, 25W, 50W |
| SENSITIVITY (8) | 91dB |
| MAXIMUM SPL (9) | 113dB continuous, 119dB peak 6.2W=99dB, 12.5W=102dB, 25W=105dB, 50W=108dB. |
| NOMINAL IMPEDANCE | 8Ω |
| DISPERSION (-6dB) | 110°-80° horizontal, 80° vertical (user-rotatable) |
| CROSSOVER | 2.5kHz passive |
| ENCLOSURE | 9 litre, composite material |
| FINISH | Black or white as standard |
| PROTECTIVE GRILLE | Zinc plated mild steel with powder coated finish and weatherised backing |
| ENVIRONMENTAL | Rated at IP54 |
| CONNECTORS | Low profile 13A push-lock, weatherproof input panel cover with dual cable glands |
| PIN CONNECTIONS | Left to right: Input+, Input -, Link -, Link + |
| FITTINGS | 4 x M6 inserts for wall/ceiling brackets |

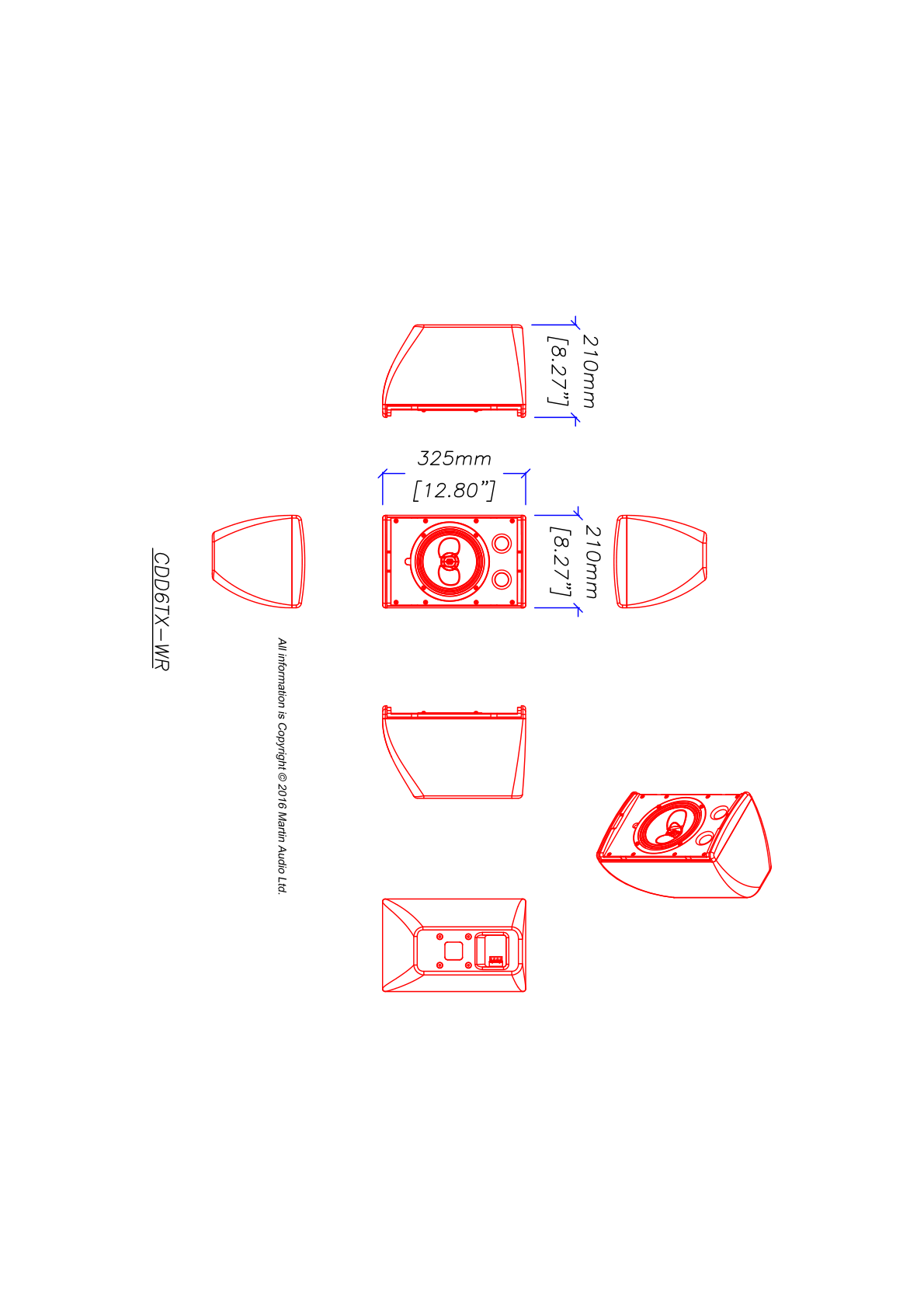

| DIMENSIONS | (W) 210mm x (H) 325mm x (D) 210mm (W) 8.3ins x (H) 12.8ins x (D) 8.3ins |
| WEIGHT | 6.77kg (14.93lbs) |
