VTR-12R IP | Vision Professional Architectural Equipment
Professional Architectural solution by Vision - Available throughout the Middle East
Vision

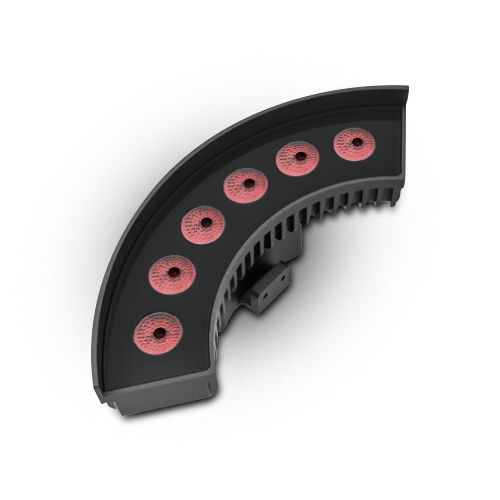

IP67-rated outdoor light consisting of six LEDs radiating 728 lumens with versatile beam lights, spot angles and natural convection cooling
VTR-12R IP Technical Specifications
Complete technical specifications and documentation for the VTR-12R IP by Vision
Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| LED | 6 pcs |
| Lumen | 728 lumens |
| IP grade | IP 67 |
| Beam light | 20°, 30°, 40° |
| Spot angle | 40°, 50°, 75° |
| CRI | Ra≥70 |
| Color | 1800K-6000K optional |
| Cooling | Natural convection |
| Housing material | Die-cast aluminum |
| Permitted ambient temperature | -20 to +45°C |
| Housing color | Matte black / grey |
| Control mode | On / off |
| Power installation | Independent |
| Connection | 2-pin rubber cable: input / output |
VTR-12R IP Downloads & Documentation
Access technical documentation, manuals, and resources for the VTR-12R IP by Vision
