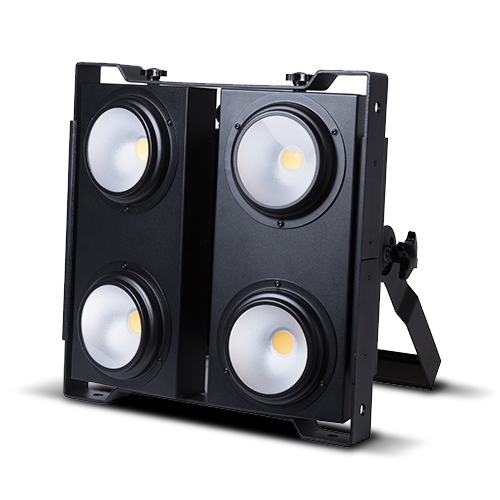

Four-piece 100W warm white LED with 20,137 lumens and four dimming curve options
VBL-04 Technical Specifications
Complete technical specifications and documentation for the VBL-04 by Vision
Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| Lux | 20,137 lumens |
| Peak intensity | 18344 cd |
| LED | 4 pcs. 100W COB LED (warm white) |
| Strobe | 0-20Hz |
| Beam angle | 70° |
| Dimmer | 0-100%, 4 dimming curve options |
| Drive current | 2800mA |
| Color temperature | 3200K |
| Color rendering index | >90Ra |
| Input voltage | 100-240 VAC 50/60Hz |
| Max power | 400W |
| Protocol | DMX512 |
| Personality | 5/2/7 channels |
| Environment | IP20/indoor |
| Operation temperature | -20°C – 40°C |
