Vision

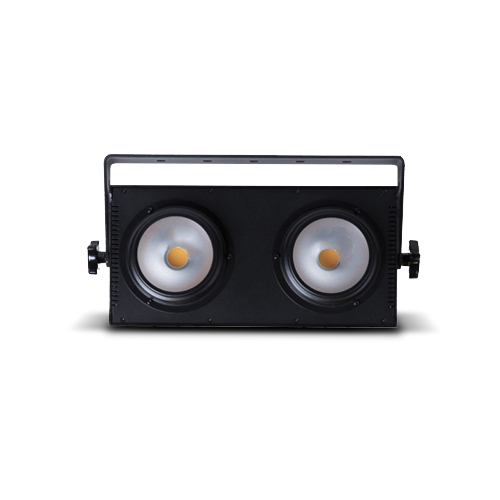

Two-piece 100W warm white LED with 10,612 lumens and four dimming curve options
VBL-02 Technical Specifications
Complete technical specifications and documentation for the VBL-02 by Vision
Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| Lux | 10,612 Iumens, 4-peak |
| Intensity | 9781 cd light source |
| LED | 2 pcs 100W COB LED (warm white ) |
| Strobe | 0-20Hz |
| Beam angle | 70° |
| Dimmer | 0-100%, 4 dimming curve options |
| 4-Drive current | 2800mA |
| Color temperature | 3200K |
| Color rendering index | >90Ra |
| Input voltage | 100-240VAC 50/60Hz |
| Power | 210W |
| Protocol | DMX512 |
| Personality | 1/3/7 channels |
| Environment | IP20/indoor |
