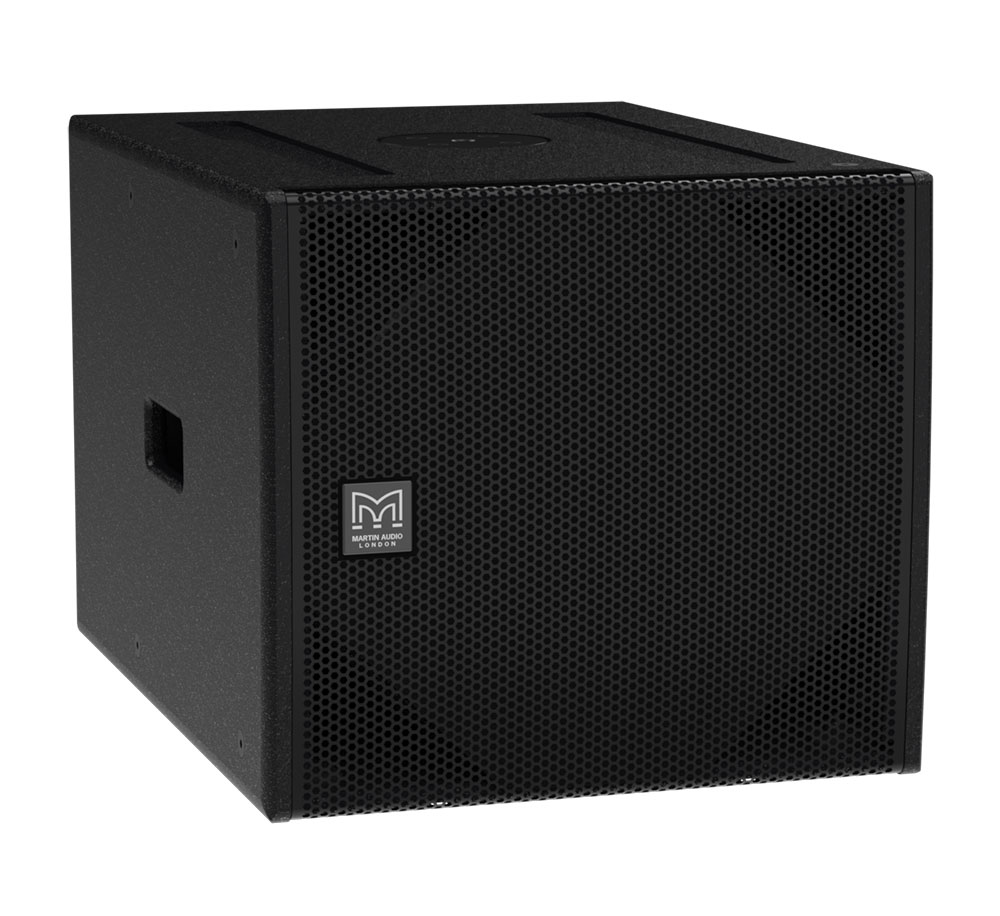

SX115 - Professional Passive Subwoofers Equipment Description
Detailed information about the SX115 by Martin Audio
Technical Overview
The durable plywood enclosure is finished in hardwearing textured paint and incorporates threaded inserts for eyebolt suspension of a single enclosure, as well as safety points. Inserts are also provided for the attachment of side rigging strips to assemble a flown installed array of up to four encl
SX115 Technical Specifications
Complete technical specifications and documentation for the SX115 by Martin Audio
Technical Drawing
Product Specifications
| Name | Value |
|---|---|
| TYPE | Direct radiating subwoofer |
| Crossover Frequency | 100Hz |
| FREQUENCY RESPONSE 4 π (5) | 45Hz - 100Hz ± 3dB, -10dB @ 36Hz |
| DRIVERS | LF: 15” with 4” Voice coil, Ferrite Motor |
| SENSITIVITY | (2.83V 1m half space) 100dB |
| NOMINAL IMPEDANCE | 8 Ohms |
| RATED POWER | AES 800W, PEAK 3200W |
| MAXIMUM SPL (SYSTEM) | 130dB continuous, 136dB peak, 142dB peak (12dB) |
| DISPERSION | Omni-Directional/ or Cardioid (paired) |
| Connectors | 2 x NL4 |
| PIN CONNECTIONS (INPUT) | 1+/- or 2+/- |
| PIN CONNECTIONS (LINK) | 1+/- and 2+/- |
| FITTINGS | Two skids on base, with mating channels on top M20 top-mounted thread plate for pole mounting Two pocket handles 24 x M10 mounting points 16 x M8 inserts for optional castors |
| DIMENSIONS | (W) 500 mm, (H) 451 mm, (D) 678mm ( 806mm with Casters) (W) 19.69 ins, (H) 17.76 ins, (D) 26.69 ins ( 31.73 ins with Casters) |
| WEIGHT | 36.5kg (80.5lbs) |
