Description

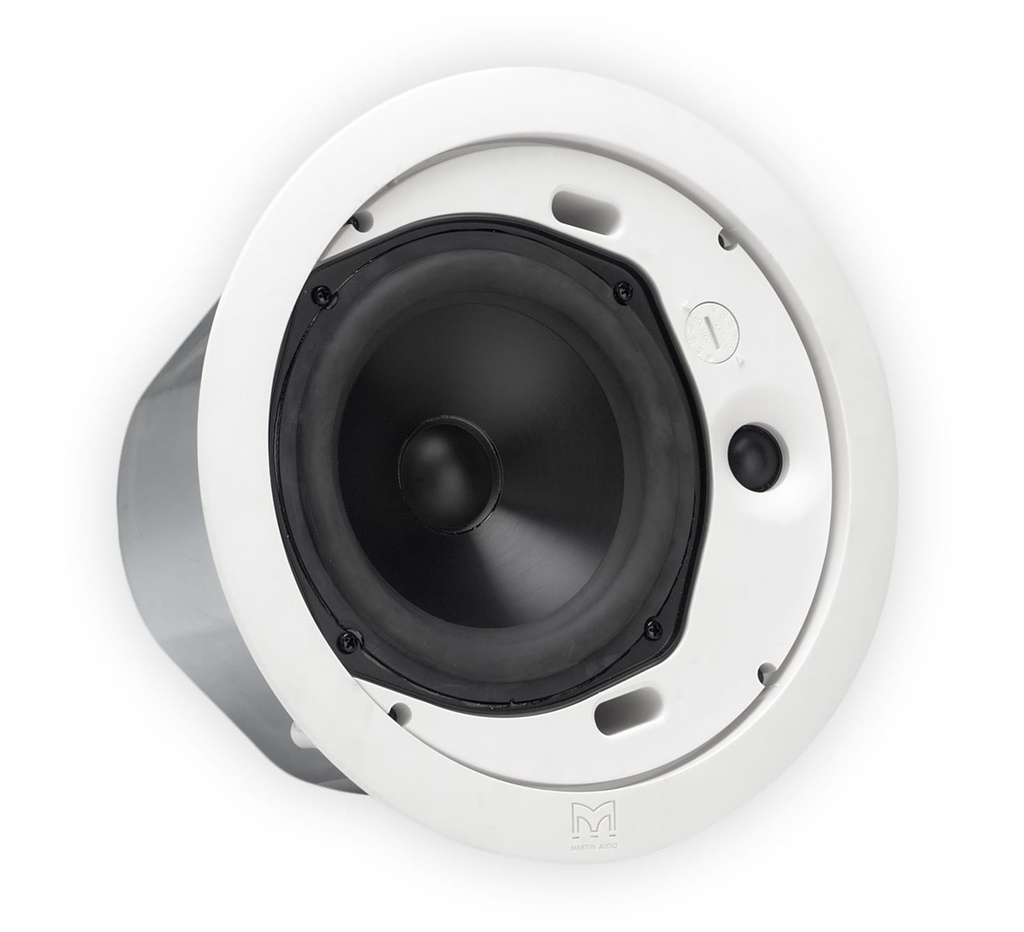

The side-by-side arrangement of the drive units maintains smooth response up to 75° off-axis and makes the C6.8T perfectly suited for use in low ceilings, where its broad coverage means that fewer units will be required to deliver premium sound over the required listening area. The C6.8T features a
Specifications
| Name | Value |
|---|---|
| TYPE | Ceiling mounted, two-way vented enclosure |
| FREQUENCY RESPONSE (5) | 90Hz-20kHz ± 3dB -10dB @ 70Hz |
| DRIVER | 6.5" (165mm) UL94V-0 PP bass driver 0.8" (19mm) dome tweeter |
| RATED POWER (2) | 75W AES, 300W peak |
| SENSITIVITY (8) | 89dB |
| MAXIMUM SPL (9) | 106dB continuous, 112dB peak |
| NOMINAL IMPEDANCE | 16Ω |
| DISPERSION (-6dB) | 150° conical up to 7kHz |
| CROSSOVER | 4kHz passive |
| ENCLOSURE | Steel backcan |
| FINISH | Bezel & grille – white UV resistant (Overpaintable) Backcan – zinc plated |
| PROTECTIVE GRILLE | Perforated steel |
| CONNECTORS | Rising clamp plug and socket |
| ACCESSORIES (included) | 40W 70/100V line transformer Tile rails C bracket Paint mask Cut-out template |
| VOLTAGE TAPS | 100V – 40W, 20W, 10W 70V – 40W, 20W, 10W, 5W |
| DIMENSIONS | (OD) 260mm x (D) 181mm (OD) 10.2ins x (D) 7.1ins |
| CUT-OUT DIAMETER | 224mm (8.83 ins) |
| WEIGHT | 3.5kg (7.7lbs) |
