Martin Audio - ACS-55T-W
Martin AudioAudio Passive Loudspeakers
Compact - Two-Way 5.25'' Ceiling Speaker In White Packed In Pairs, Price Per Single Unit
Description

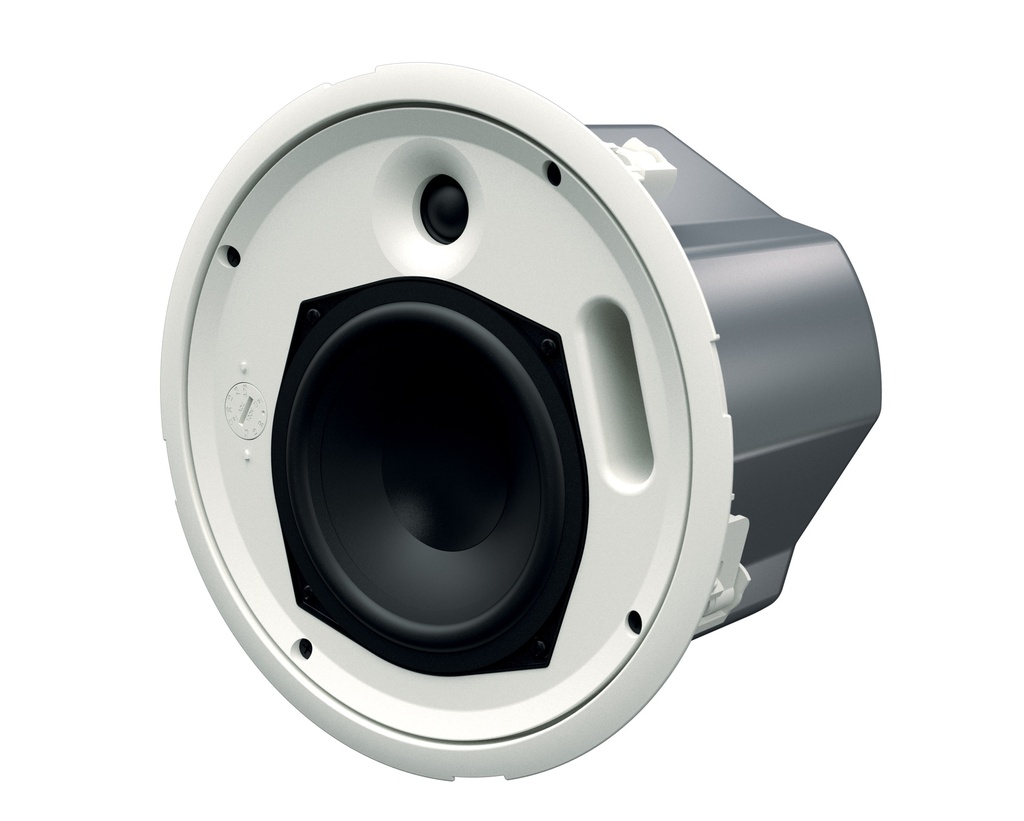

The ACS-55T brings full-frequency response, consistent coverage and intelligibility to a wide range of architectural environments — from hotels and concourses to retail outlets, bars and restaurants. Comprising a 5.25” (135mm) LF driver and a 0.75” (19mm) silk-dome tweeter, the ACS-55T produces 113
Specifications
| Name | Value |
|---|---|
| TYPE | Compact, passive two-way ceiling speaker, ported bass reflex |
| FREQUENCY RESPONSE (1) | 98Hz-20kHz ± 3dB -10dB @ 62Hz |
| DRIVERS | LF: 5.25” /1” high-temp voice coil, coated paper cone, rubber surround, ferrite motor, pressed steel chassis HF: 0.75” silk dome, neodymium motor |
| RATED POWER (2) | 50W AES, 200W peak |
| RECOMMENDED AMPLIFIER | VIA2004 (for low-impedance operation) |
| SENSITIVITY (4) | 90dB / 1W(4V) / 1m |
| MAXIMUM SPL (9) | 113dB peak |
| NOMINAL IMPEDANCE | 16Ω |
| DISPERSION (-6dB) | 150° conical up to 7kHz |
| CROSSOVER | 3kHz passive (LF and HF auto-resetting fuses) |
| TRANSFORMER TAPS | 70V: 30w / 15w / 7.5w / 3.75w 100V: 30w / 15w / 7.5w |
| RECOMMENDED HIGH-PASS FILTER | 65Hz 24dB/oct |

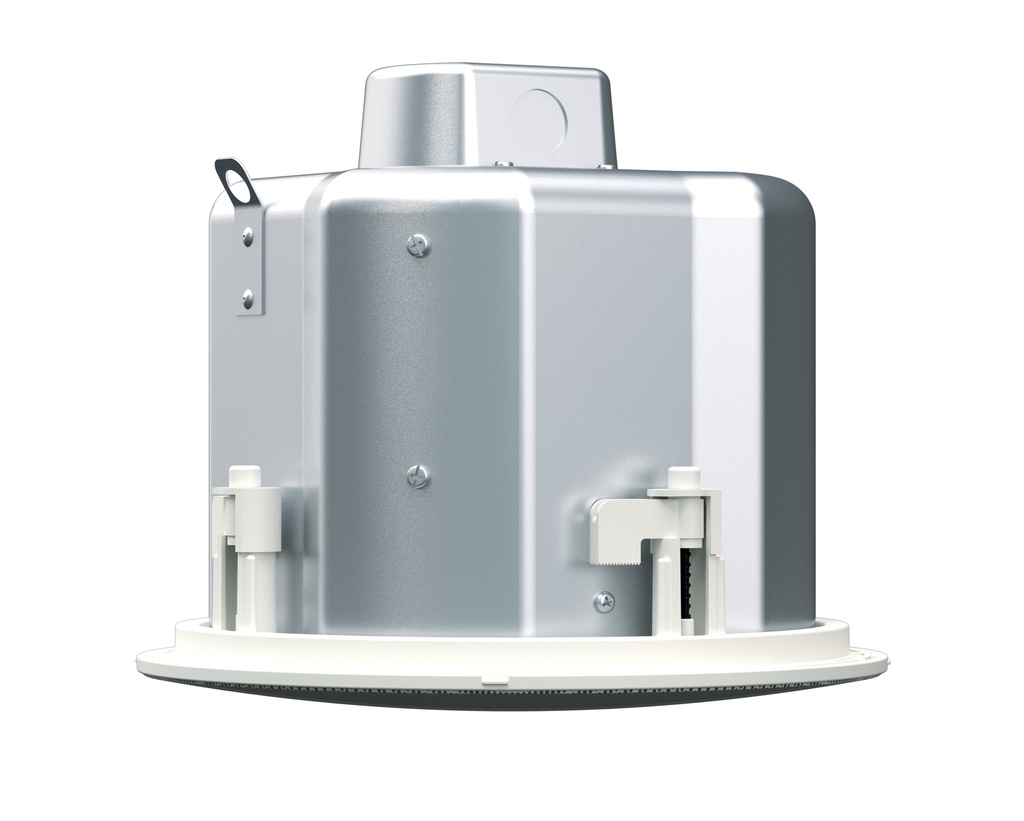

| ENCLOSURE | UL 94V-0 rated ABS baffle with steel backcan |
| FINISH | Baffle and grille: RAL9016 white Backcan: zinc plated |

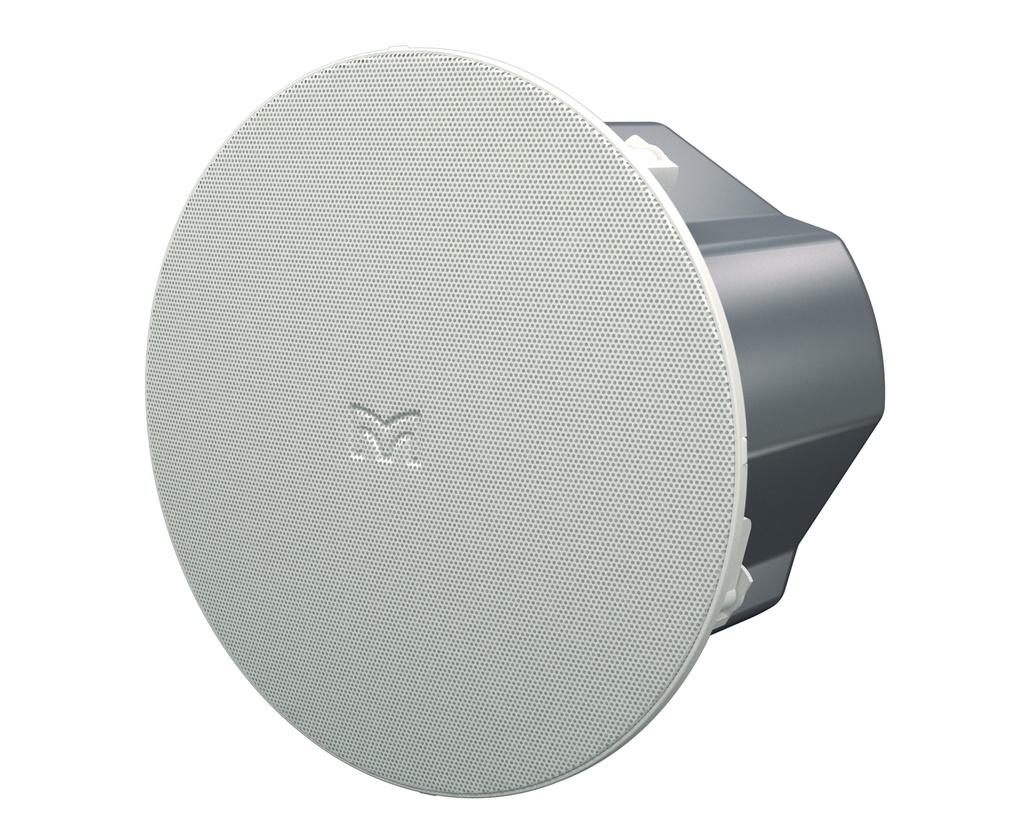

| GRILLE | Perforated steel, powder-coated, bayonet fitting |
| CONNECTORS | Ceramic connector (in and link) located behind fire-retardant steel cover |
| ACCESSORIES (included) | 2 tile rails C-ring backing plate Cut-out template |
| DIMENSIONS | (OD) 245mm x (D) Back Can 192mm, (D) Inc. Grille 209mm (OD) 9.7in x (D) Back Can 7.55in, (D) Inc. Grille 8.23in |
| HOLE CUT-OUT DIMENSION | 222mm (8.74”) diameter |
| WEIGHT | 3kg (6.6lbs) |
